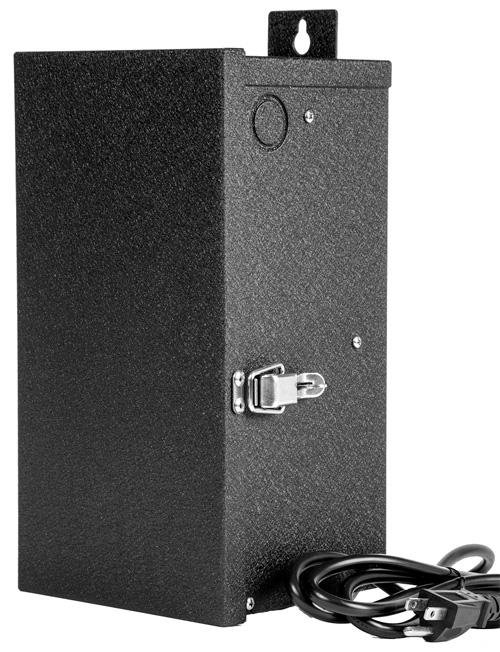

EMCOD EMT600-E - 600W 12/15V AC - Landscape Multi-Tap Magnetic Transformer - Powder Coated Black Steel
EMCOD EMT Economy Landscape Multi-Tap Magnetic Transformer | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: EMT600-E
 |
Conforms to UL STD. 1838 |
| Certified to CSA STD. C22.2 № 250.0, 250.7 |
|
Magnetic Outdoor Non Dimmable MT
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
Transformer
Not dimmable if use timer or/and photocell
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Magnetic manually reset secondary breaker 25A
Timer and photocell build in options
Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 5 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 13, W = 5.56, D = 5.54
Weight (LBs): 1.4
Electrical Parameters
| Input Voltage: | 120V Hz | |
| Max. input current: | 5A at full load | |
| Output voltage without load: | 12/ 13/ 14/ 15VAC | |
| Output voltage fully loaded: | 11.5/ 12.5/ 13.5/ 14.5VAC | |
| Max. Total Wattage: | 600W | Max. per circuit:300W |
| Max. Output Current: | 25/ 23/ 21/ 20A per circuit. | |
| Efficiency: | 93% | |
| Load regulation: | 4% | |
