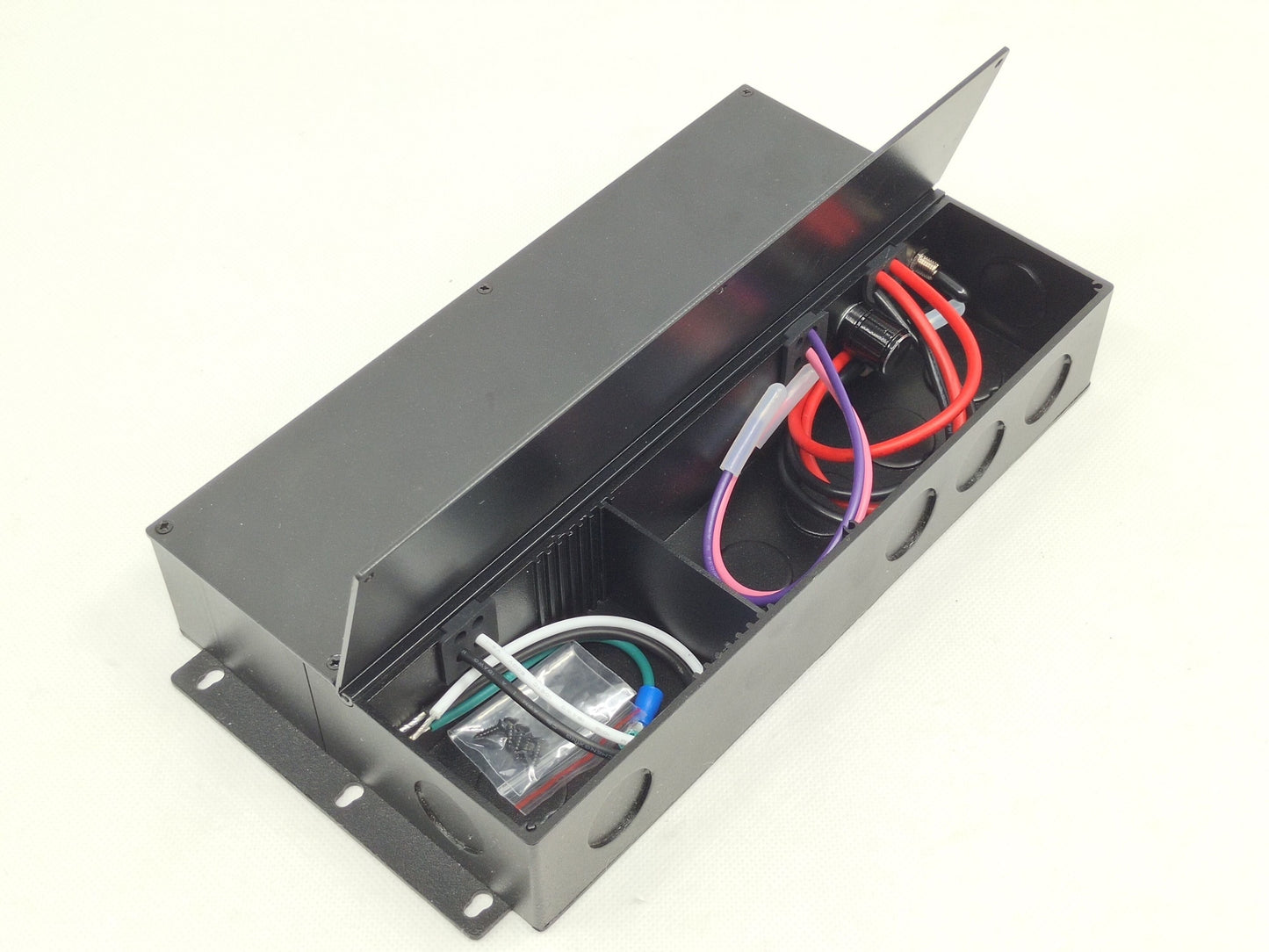

EMCOD ECV300-12DC-UD Class 2 Electronic Class P UNIV 5 in 1 dimming
EMCOD ECV - Constant Voltage Series | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: EMCOD-ECV300-12DC-UD
Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Housing
The actual transformer 150W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 4X rated
Wiring compartment has 8 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 13.38, W = 5.2, D = 1.93
Weight (LBs): 4.63
Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 3.3A
Output voltage without load: 12.1VDC
Output voltage fully loaded: 12VDC
Max. Total Wattage: 200W
Max. Output Current: 25A
Efficiency: 90%
Load regulation: 0.5%
Installation Guide
