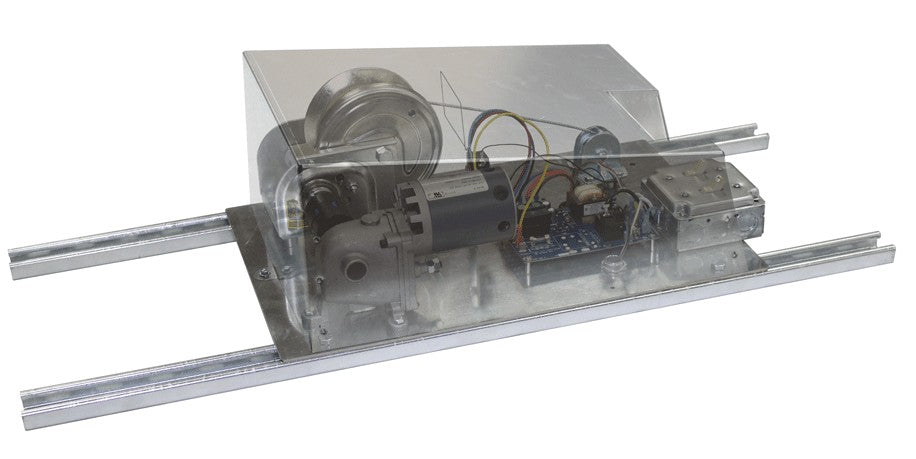

Aladdin ALL200-CM 200lbs Light Lift Commercial Grade Standard Mount

200 lbs. Maximum Fixture Weight, Commercial Grade, Standard Mount, UL Listed.

• 200lbs maximum capacity
• Keyswitch Controller
• 35’ winch cable
• 1650 watt light wattage capacity
• 110 volt
• Mounts directly above fixture (at least 3’ vertical access space recommended)
• 14” wide x 20.5” long x 9” high (mounted on two 36” channel struts)
• Metal dust cover
• MC Cable
• 50’ Controller wire
• UL Listed

Options

• SmartLift Controller (programmable keyswitch)
• Relamping cord
• Increase Controller wire to 100’
• Increase winch cable to 65’
• Increase light wattage capacity to 2200 watts
• Increase light wattage capacity to 3300 watts (two 1650 watt light circuits)
• Sloped Ceiling Adaptor
• Voltage Options: 110V, 208V, 240V, 277V

Downloads

• ALL200 Installation Instructions
• ALL200-3300W Installation Instructions (Two Circuit Fixtures Only)
• Controller Guides
