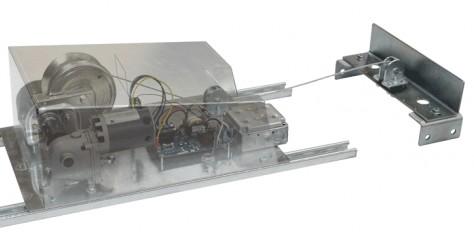

Aladdin ALL700RM-CM 700lbs Light Lift Commercial Grade Remote Mount

700 lbs. Maximum Fixture Weight, Commercial Grade, Remote Mount, UL Listed.

• 700lbs maximum capacity
• Remote Mount light lift: used in limited access installations
• Motor mounts in accessible location up to 25’ away from fixture location
• Chandelier Pulley Assembly included

• SmartLift Controller (programmable keyswitch)

• 65’ winch cable
• 2200 watt light wattage capacity
• 110 volt
• 18” wide x 29.5” long x 10” high (mounted on three 38” channel struts)
• Metal dust cover
• 25’ MC Cable
• 50’ Controller wire
• UL Listed

Options

• Directional Pulley(s)
• Relamping cord
• Increase Controller wire to 100’
• Increase winch cable to 90’ or 120’
• Increase light wattage capacity to 3300 watts (two 1650 watt light circuits)
• Sloped Ceiling Adaptor
• Conduit cut to minimum
• Voltage Options: 110V, 208V, 240V, 277V

Downloads

• ALL700RM Installation Instructions
• ALL700RM-3300W Installation Instructions (Two Circuit Fixtures Only)
• Controller Guides
