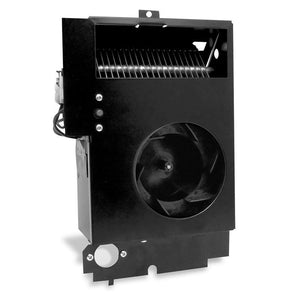

DISCONTINUED** Cadet CM152T - Com-Pak Max Electric Heater - Heater Assembly, With Thermostat - 208V / 240V *DISCONTINUED*
*DISCONTINUED*
Com-Pak Max
The Com-Pak Max electric wall heater warms up living rooms, bedrooms, and other areas. And you've got options—install vertically or horizontally, with two different grill choices to fit any room.
- Enjoy years of reliable use with our sturdiest sealed element
- Rest easy—includes high-temperature safety shutoff feature
- Fit any application with horizontal or vertical installation options
- Durable design built for years of trouble-free use
- Multi-watt options available
- Easy installation
- Proudly made in the USA
- 3-year warranty
- ETL listed
Need help choosing the right heater for your room?
Click here to find the right voltage.
TECHNICAL INFORMATION
UL safety standards require the heater to be placed a minimum distance of 6 inches (15.2 cm) from adjacent surfaces and 4-1/2 inches (11.4 cm) from the floor. Cadet recommends a 12-inch clearance from all surfaces for longer and cleaner performance. A 3-foot (91.44 cm) minimum clearance is required for furniture or other objects placed directly in front of the heater. This model is not approved for ceiling installation. Electric wall heaters and thermostats work best when installed on an inside wall. We recommend installing the heater assembly after walls are finished. Heater must be cleaned every six months minimum.
DIMENSIONS
Rough-In
Horizontal Mount: 10-1/8"W x 8"H x 4"D Vertical Mount: 8" H X 10-1/8" W X 4"D
Wall Can
Horizontal Mount: 11-1/2"W x 7-7/8"H x 4"D Vertical Mount: 7-7/8" W x 11-1/2"H x 4" D
Grill
Horizontal Grill: 12"W x 9"H x 1"D Vertical Grill: 9"W x 12"H x 1"D
SPECIFICATIONS
WATTAGE
700/ 800/ 1500
525/ 600/ 1125
AMPS
2.9/ 3.3/ 6.3
2.5/ 2.9/ 5.4
