Core Lighting ALP-20-48-WH - 48" SURFACE MOUNT PROFILE LED TAPE CHANNEL - White
Core Lighting ALP-20-48-WH - 48" SURFACE MOUNT PROFILE LED TAPE CHANNEL - White
ALP-20-48-WH
Couldn't load pickup availability
The ALP-20 is an Architectural Grade LED extrusion profile designed for linear LED strips up to 10mm wide. Made from high-quality Aluminum, these extrusions provide superior thermal management for higher wattage LED strips and prolong the lifespan of your lighting system. This surface mount profile is manufactured with a patented frosted diffuser for maximum lumen output and wide beam distribution. The ALP-20 profile helps protect LEDs from dust and other undesirable elements, which can shorten the LED’s life. They are also an elegant design solution for any space.
FEATURES
■ TYPE: Surface Mount
■ AVAILABLE LENGTHS: 49.25″ | 98.5″
■ FINISH: WHITENEW | BLACKNEW | SILVER
■ LENS OPTIONS: Frosted

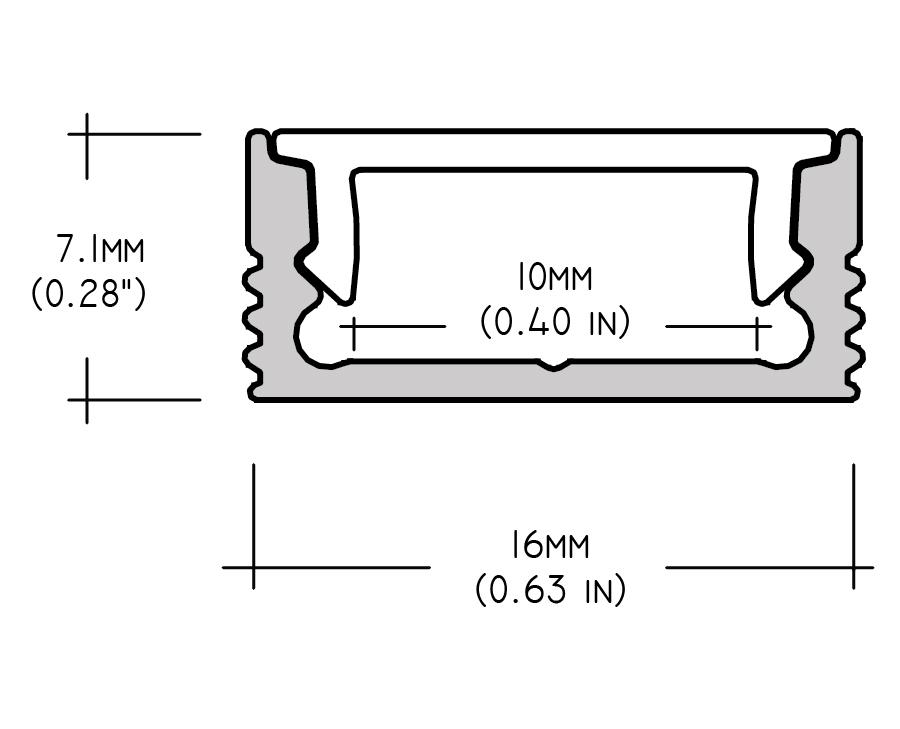

■ LED COMPATIBILITY: Fits LED strips up to 0.40″ (10MM)
■ Custom lengths available
■ Custom color finishes available (POWDER COATING, additional fees apply)
■ Durable, long lasting
■ Anodized aluminum
■ Protects LED systems from dust, dirt and other elements
■ Slim, low profile design
■ Dissipates heat from LED system
*** LENS DIFFUSER INCLUDED
*** 2 END CAPS & 2 MOUNTING CLIPS INCLUDED WITH EVERY PROFILE
*** LED STRIPS SOLD SEPARATELY
INSTRUCTIONS
