Core Lighting ALP230N-98 - 98" SURFACE / SUSPENDED / RECESSED LED PROFILE - LED TAPE CHANNEL
Email us to inquire
quote@readywholesaleelectric.com
Contact us for more details or to place an order
ALP230N-98

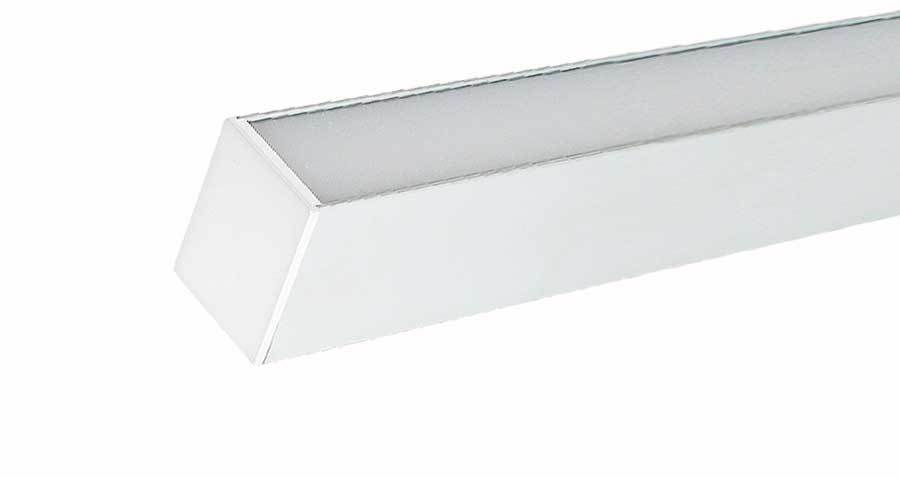

The ALP-230N is an Architectural Grade LED extrusion profile designed to fit linear LED strips up to 33mm wide. It can be surface, suspended or recessed mount. It features optional corner / angle connectors for seamless attachments. Made from high quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips and prolong the overall lifetime of your lighting system. The ALP-230N is manufactured with a patented frosted diffuser for maximum lumen output and wide beam distribution. The ALP-230N also helps protect LED’s from dust and other undesirable elements, which can shorten the lifetime of the LED.
FEATURES
■ TYPE: Surface | Suspended | Recessed
■ AVAILABLE LENGTHS: 49.25″ | 98.5″
■ FINISH: Anodized Silver
■ LENS OPTIONS: Frosted

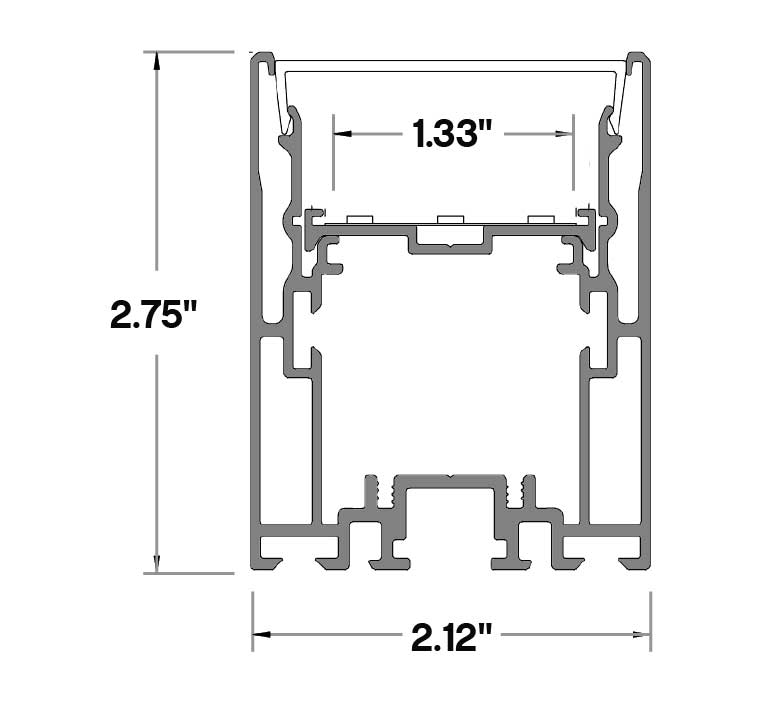

■ LED COMPATIBILITY: Fits LED strips up to 1.3″ (33 MM)
■ Custom lengths available
■ Optional T, L and X connectors for corners and angles
■ Custom color finishes available (POWDER COATING, additional fees apply)
■ Protects LED systems from dust, dirt and other elements
■ Dissipates heat from LED system
■ LENS DIFFUSER INCLUDED
■ TWO (2) END CAPS INCLUDED WITH EVERY PROFILE
■ LED STRIPS SOLD SEPARATELY
■ OPTIONAL CONNECTORS SOLD SEPARATELY
■ SUSPENSION KIT SOLD SEPARATELY
