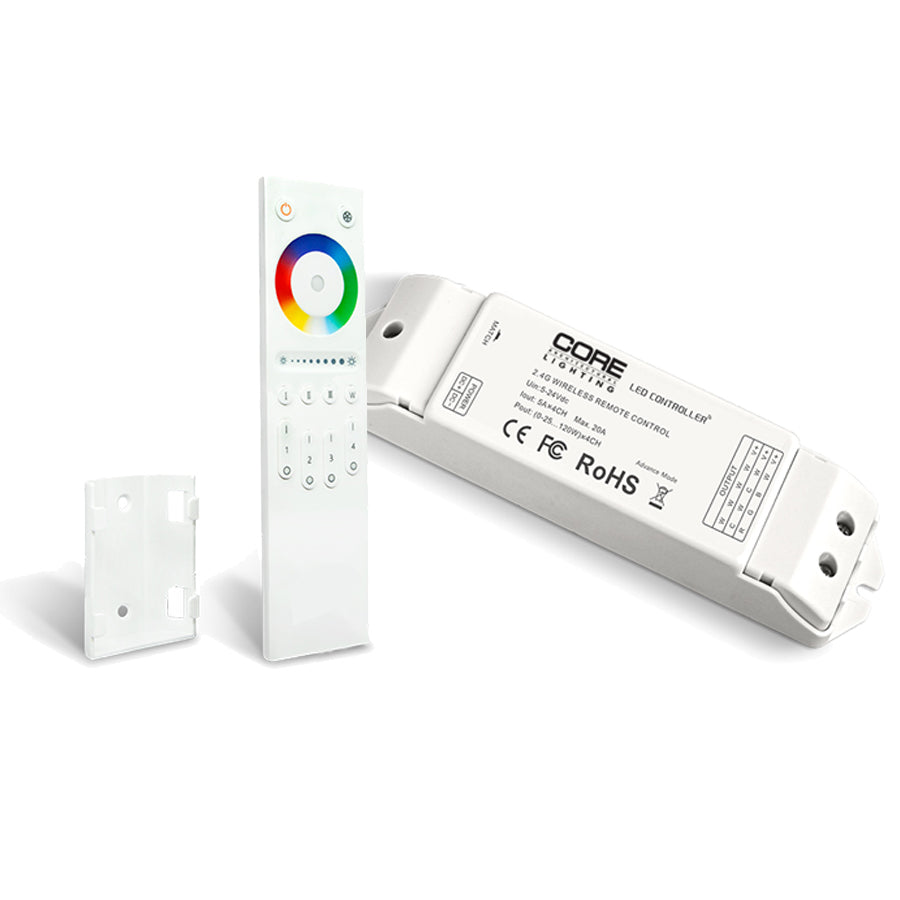

Core Lighting RGB CT-550 RGB/RGBW Wireless Receiver/Controller System - (Wireless Receiver Only)

The RGB-CT550 Wireless Receiver & Control System controls up to 4 independent zones of RGBW (Red,Green,Blue, and White)light. With the addition of white light, brighter colors can be achieved as well as the introduction of the pastel range, which will satisfy color requirements for the most discerning lighting designers.

Remote and Receiver sold separately.

PRODUCT FEATURES
■ RGB/RGBW wireless zone receiver
■ 2.4GHz Wireless Signal
■ Color wheel picker
■ Customizable 4 independent zones
■ Wireless remote sold separately
■ Remote range up 50M

RECEIVER SPECS (RGB CT-550)

INPUT VOLTAGE	DC5V ~ DC24V
MAX CURRENT LOAD	5A x 4CH MAX 20A
MAX OUTPUT POWER	240W (12V)  |  480W (24V)
REMOTE DISTANCE	50 meters
WIRELESS SIGNAL	2.4 GHz
WORKING TEMP	-30ºC~55ºC (-22ºF~58ºF)
PROTECTION	Reverse connection protection, Over current, over heat, short circuit
