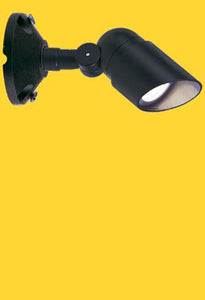

Corona Lighting CL-105 Aluminum Bullet Down Light
Corona Lighting CL-105 Aluminum Bullet Down Light
Email us to inquire
quote@readywholesaleelectric.com
Contact us for more details or to place an order
CL-101-WH-BK
Aluminum Bullet Down Light
Housing & Shroud: Diecast aluminum. 360° rotatable shroud.
Finish: Polyester UV Powder Coated.
BK- Black
BZ- Bronze
GT- Granite
RT- Rust
VG- Verde Green
WH- White
Lens: Clean, tempered, and heat resistant flat glass.
See accessories & parts for special effect lenses and honeycomb louver.
Socket: Top grade fixed bi-pin socket, with retention clip to keep lamp in place.
Lamp Type: 12V, MR-16 halogen, 50W max. L-BAB-C20(20w) lamp is standard.
Fixture is compatible with LED, LED(Color) and halogen lamps. See lamp guide for information.
Wiring: Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Universal connector (CX-839) or silicone filled wire nut (CX-854) are availble throughCorona Lighting.
Gasket: Silicone "O" ring seals faceplate to housing providing weather-tight protection.
Knuckle: Diecast aluminum adjustable knuckle with wing screw and ½" NPT threaded male hub on bottom. Adjustable knuckle with wing screw.
Mounting: Aluminum mounting canopy with ½" NPT threaded female hub.
See Accessories and parts for additional mounting hardware and options.
Warranty: One (1) year warranty on fixture housing against manufacter's defects
Electrical Notes:.
•Fixture ships with 20W halogen lamp as standard.
•Remote 12 Volt transformer is required.
•Voltage ranges: ◦ Halogen: 11-12.5V. ◦LED: 9-17V
•Proper grease/lubricant is suggested on threaded parts for installation process.
