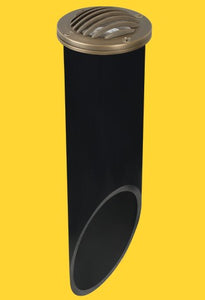

Corona Lighting CL-203 Brass Well Light
Corona Lighting CL-203 Brass Well Light
Email us to inquire
quote@readywholesaleelectric.com
Contact us for more details or to place an order
CL-203-AB
Brass Well Light
HOUSING: Cast brass fixture mounted with stainless steel retention clips inside PVC sleeve.
FACEPLATE FINISH: AB- Antique Bronze. Natural toning process. AB finish will vary due to artistic process
SS- Stainless Steel also available.
LENS: Clear, tempered, and heat resistant convex glass. Extra flat lens included.
SOCKET: Top grade ceramic bi-pin socket with retention clip.
LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard.
Fixture is compatible with LED, LED(Color) and halogen lamps. See lamp guide for information.
GASKET: Silicone “0” ring seals faceplate to housing providing weather tight protection.
WIRING: Fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord. Wire connector sold separately. Silicone filled wire nut (CX-854) may be ordered to Corona Lighting.
MOUNTING: In-ground direct burial or concrete encasement.
WARRANTY: Limited lifetime warranty on brass fixture against manufacturer’s defects.
Electrical Notes:
•Fixture is supplied with 20W MR-16 lamp.
•Lamp operating voltage ranges are:
◦Halogen: 11-12.5V
◦LED: 9-17V
•Proper greasing and lubrication threaded parts is suggested for installation.
•Remote 12 Volt transformer is required.
•See transformers and accessories for variety of options and choices.
