Corona Lighting CL-502-NM Directional Lights, Fiberglass Mini Bullet, Black

COR-CL-502-NM

Will Call / Pick up

This product may have been updated or is only available for quote. Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Items that don’t display pricing may require a custom quote.

Product Information

Overview

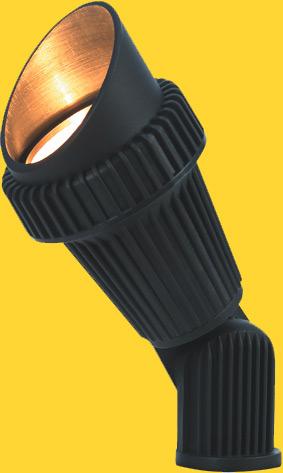

Fiberglass mini bullet with injection molded fiberglass housing for high UV stability. Finished in NM-Black with other finish options in aluminum (BK-Black, BZ-Bronze, GR-Green, VG-Verde Green). Features clear tempered, heat-resistant glass lens with silicone gasket. Compatible with 12V MR-16 halogen, LED, and LED color lamps. Prewired with direct burial cord and adjustable die-cast aluminum knuckle.

Technical Specification

Housing
Injection molded fiberglass for high UV stability
Finish
NM-Black; also available in aluminum, polyester UV powder coated finish in BK-Black, BZ-Bronze, GR-Green, VG-Verde Green
Lens
Clear, tempered, heat-resistant glass with silicone gasket; see accessories & parts for special effect lenses, honeycomb louver, frosted glass lens CX-251-FR
Lamp
12V, MR-16 halogen, 35W max; L-BAB-C20 (20W) standard; compatible with LED, LED(Color), and halogen lamps
Wiring
Prewired with 3ft 18-2 SPT2-W direct burial cord; wire connectors sold separately; universal connector (CX-839) or silicone filled wire nut (CX-854) available
Gasket
Silicone gasket providing weather-tight protection

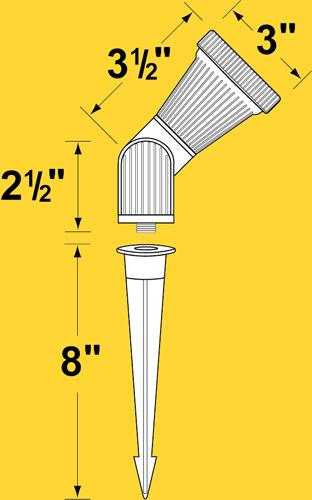

Knuckle
Adjustable die-cast aluminum knuckle with Phillips shaped screw and ½" NPT threaded male hub on bottom
Mounting
Black 6" aluminum mounting spike with ½" NPT threaded female hub; optional mounting hardware available
Operating Voltage
LED lamps: 9-17V; Halogen lamps: 11-12.5V

Additional Information

  • Fixture supplied with 20W MR-16 lamp.
  • Proper greasing and lubrication of threaded parts is suggested for installation.
  • Remote 12 Volt transformer required.
  • See transformers and accessories for various options and choices.

    When ordering, add the 2-letter color code to the end of the product number.
