Corona Lighting CL-509 Directional Light - Aluminum Flood

Corona Lighting CL-509 Directional Light - Aluminum Flood

COR-CL-509-BK

Color

This product may have been updated and we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

These items don’t display pricing because they require a custom quote.

Product Information

Overview

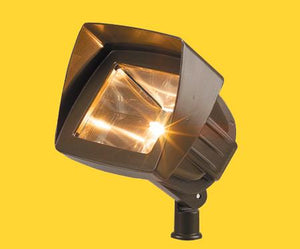

The CL-509 is an aluminum flood directional light with a die-cast aluminum housing finished in polyester UV powder coating, available in black, bronze, and verde green. It features a clear, tempered, heat-resistant glass lens, a top-grade fixed ceramic bi-pin socket, and comes prewired with a 3-ft direct burial cord. The adjustable diecast aluminum knuckle uses a wing screw design and has a ½" NPT hub. Mounting is via an 8½" black ABS spike with a ½" NPT threaded male hub. Compatible with 12V T3 halogen, LED, and Xenon lamps.

Technical Specification

Model
CL-509
Housing
Die-cast Aluminum
Finish
Polyester UV Powder Coated (BK-Black, BZ-Bronze, VG-Verde Green)
Lens
Clear, Tempered, Heat Resistant Glass
Socket
Top Grade Fixed Ceramic Bi-Pin Socket
Lamp
12V T3 Halogen, 35W Max; L-20T3 (20W) Standard; Compatible with LED, Xenon, Halogen Lamps
Wiring
Prewired with 3ft 18-2 SPT2-W Direct Burial Cord; Wire Connector Sold Separately (CX-839 Universal Connector or CX-854 Silicone Filled Wire Nut)
Gasket
Silicone Gasket for Weather-Tight Sealing
Knuckle
Adjustable Diecast Aluminum with Wing Screw; ½" NPT Hub on Bottom
Mounting
8½" Black ABS Spike with ½" NPT Threaded Male Hub
Lamp Operating Voltage
Halogen: 11-12.5V; LED: 8-21V
Transformer
Remote 12 Volt Transformer Required

Additional Information

  • Fixture supplied with 10W T3 lamp
  • Proper greasing and lubrication of threaded parts recommended for installation
  • When ordering, add the 2-letter color code to the end of the product number
  • See transformers and accessories for a variety of options and choices
