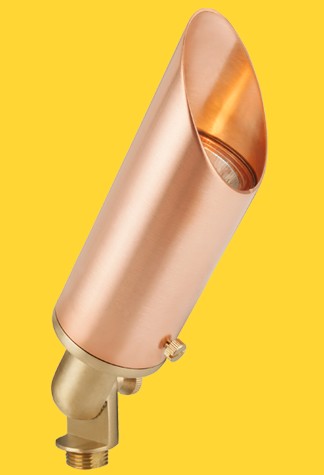

Corona Lighting CL-541C-RC Directional Light, Copper Bullet - Raw Copper

Copper Bullet, Raw Copper

HOUSING & SHROUD Corrosion Resistant Solid Copper.

FINISH: RC- Raw Copper. Will age gradually over time.

LENS: Clear and heat resistant tempered flat glass.

SOCKET: Top grade loose ceramic bi-pin socket, spring loaded design.

LAMP: 12V, MR-16 halogen, 35W max. L-BAB-C20 (20w) standard.
Fixture is compatible with LED, LED(Color) and halogen lamps. See lamp guide for information.

WIRING: Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered from Corona Lighting

GASKET: Silicone double-gasket for water tight sealing

KNUCKLE: Adjustable cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.

MOUNTING: Standard injection molded with ½" NPT threaded female hub.
See accessories & parts for optional mounting hardware.

WARRANTY: Limited lifetime warranty on fixture housing against manufacturer’s defects.

Electrical Notes:
•Fixture is supplied with 20W MR-16 lamp.
•Voltage ranges for fixture are:
◦LED lamps: 9-17V
◦Halogen lamps: 11-12.5V
•Proper greasing and lubrication threaded parts is suggested for installation.
•Remote 12 Volt transformer is required.
•See transformers and accessories for variety of options and choices
