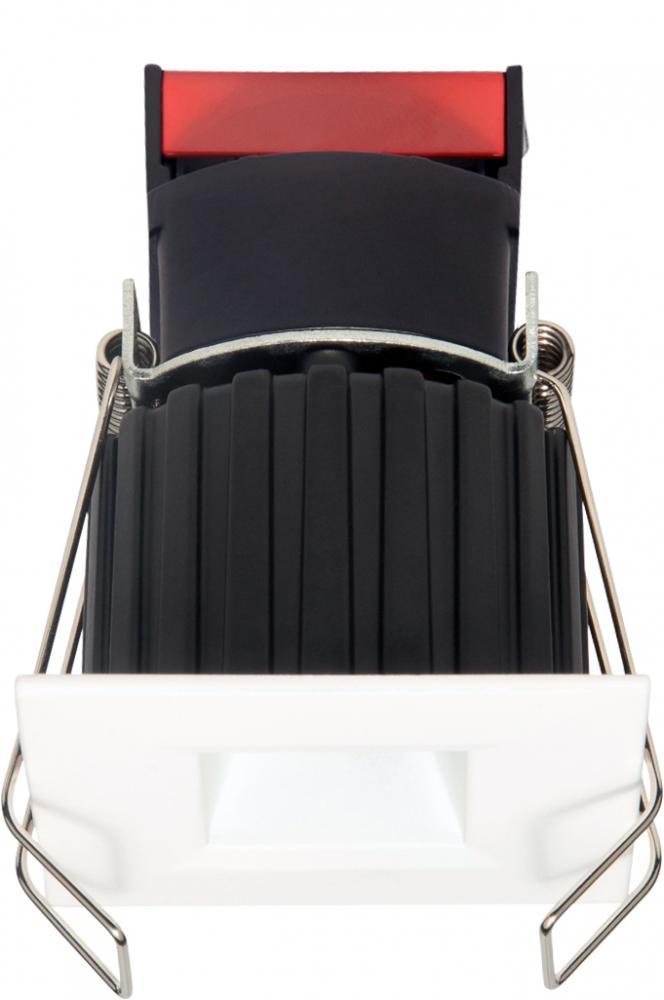

Elco 1" Square Recessed Oak Downlight 6.1W, 2700K - SunsetK, 450 lm - 675 lm

ELCO Lighting - Recessed Lighting and Accessories | Elco Oak System | Elco Recessed Residential Downlights | Products |
SKU: Elco-E1L12F27W

$68.93
Unit price per
Save $55.14

Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.

Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
IC Airtight for use with direct contact to insulation
Height allows for use in ceilings with under 3" depth. Ceiling thickness can be reduced from fixture depth.
Daisy chain up to 6 fixtures with E1LDRV60
38° Standard beam with optional 28° and 50°
Remodel requires no frame. New construction E1LF1 frame available.
Wet Location Rated for Indoor and Outdoor Use
Meets JA8-2016-E requirements, UL Listed
Life Span 50,000 Hours L70

Elco 1" Square Recessed Oak Downlight 6.1W, 2700K - SunsetK, 450 lm - 675 lm

Resources & Downloads

Specifications

Oak System Catalog (ELCAT1055)

1" Oak System

Oak System ELV Dimmer List

Oak System MLV Dimmer List

Product SKU

Catalog Number	Lamp type	Wattage	CCT	Lumens	Voltage	Dimming	Beam Angle	Finish
E1L12F27W	LED	6.1W	2700K	600 lm	12V AC	Yes	38°	White
E1L12F30W	LED	6.1W	3000K	625 lm	12V AC	Yes	38°	White
E1L12F35W	LED	6.1W	3500K	650 lm	12V AC	Yes	38°	White
E1L12F40W	LED	6.1W	4000K	675 lm	12V AC	Yes	38°	White
E1L12FSDW	LED	6.1W	SunsetK	450 lm	12V AC	Yes	38°	White
E1L12F27B	LED	6.1W	2700K	600 lm	12V AC	Yes	38°	Black w/ White
E1L12F30B	LED	6.1W	3000K	625 lm	12V AC	Yes	38°	Black w/ White
E1L12F35B	LED	6.1W	3500K	650 lm	12V AC	Yes	38º	Black w/ White
E1L12F40B	LED	6.1W	4000K	675 lm	12V AC	Yes	38°	Black w/ White
E1L12FSDB	LED	6.1W	SunsetK	450 lm	12V AC	Yes	38°	Black w/ White
E1L12F27BZ	LED	6.1W	2700K	600 lm	12V AC	Yes	38°	Bronze
E1L12NF30BZ	LED	6.1W	3000K	625 lm	12V AC	Yes	28°	Bronze
E1L12NF35BZ	LED	6.1W	3500K	650 lm	12V AC	Yes	28°	Bronze
E1L12WF40BZ	LED	6.1W	4000K	675 lm	12V AC	Yes	50°	Bronze
E1L12FSDBZ	LED	6.1W	SunsetK	450 lm	12V AC	Yes	38°	Bronze
E1L12F27H	LED	6.1W	2700K	600 lm	12V AC	Yes	38°	Haze
E1L12F30H	LED	6.1W	3000K	625 lm	12V AC	Yes	38°	Haze
E1L12F35H	LED	6.1W	3500K	650 lm	12V AC	Yes	38º	Haze
E1L12F40H	LED	6.1W	4000K	675 lm	12V AC	Yes	38°	Haze
E1L12FSDH	LED	6.1W	SunsetK	450 lm	12V AC	Yes	38°	Haze
E1L12F27BB	LED	6.1W	2700K	600 lm	12V AC	Yes	38°	All Black
E1L12F30BB	LED	6.1W	3000K	625 lm	12V AC	Yes	38°	All Black
E1L12F35BB	LED	6.1W	3500K	650 lm	12V AC	Yes	38º	All Black
E1L12F40BB	LED	6.1W	4000K	675 lm	12V AC	Yes	38°	All Black
E1L12FSDBB	LED	6.1W	SunsetK	450 lm	12V AC	Yes	38°	All Black

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
