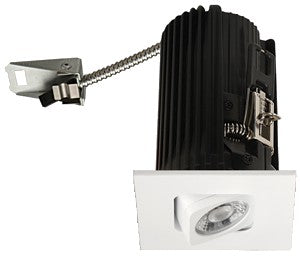

Elco E2L19F27W 2″ Square Adjustable Teak LED Light Engine

The Teak™ LED light engine is an IC Rated diecast construction specification grade 2″ LED downlight. Boasting an output up to 1100 lumens - more than a traditional 75W MR16 halogen lamp. Style options, beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project’s needs. The patented engine offers auto release clips that make installation a breeze.

• Dimmable ELV, Triac or 0-10V depending on driver used.
• Same LED light engine for 850 and 1100 lumens (see housings)
• UL Listed for Direct Contact with insulation
• Works with compatible ceilings up to 1¼″
• Height allows for use in ceilings with under 5" depth. Ceiling thickness can be reduced from fixture depth.
• 38° Standard beam with optional 28° and 60°
• Damp Location Rated
• JA8-2016-E, UL, and Energy Star Qualified
• Life Span 50,000 Hours L70
• U.S. Pat. 10,125,959

Resources & Downloads

Product SKU



Catalog Number	Lamp type	Wattage	CCT	Lumens	Beam Angle	Finish
E2L19F27W	LED	10.5 - 12.5W	2700K	850 - 1100 lm	38°	All White
E2L19F30W	LED	10.5 - 12.5W	3000K	850 - 1100 lm	38°	All White
E2L19F35W	LED	10.5 - 12.5W	3500K	850 - 1100 lm	38°	All White
E2L19F40W	LED	10.5 - 12.5W	4000K	850 - 1100 lm	38°	All White
E2L19F27B	LED	10.5 - 12.5W	2700K	850 - 1100 lm	38°	All Black
E2L19F30B	LED	10.5 - 12.5W	3000K	850 - 1100 lm	38°	All Black
E2L19F35B	LED	10.5 - 12.5W	3500K	850 - 1100 lm	38°	All Black
E2L19F40B	LED	10.5 - 12.5W	4000K	850 - 1100 lm	38°	All Black
E2L19F27BZ	LED	10.5 - 12.5W	2700K	850 - 1100 lm	38°	All Bronze
E2L19F30BZ	LED	10.5 - 12.5W	3000K	850 - 1100 lm	38°	All Bronze
E2L19F35BZ	LED	10.5 - 12.5W	3500K	850 - 1100 lm	38°	All Bronze
E2L19F40BZ	LED	10.5 - 12.5W	4000K	850 - 1100 lm	38°	All Bronze
