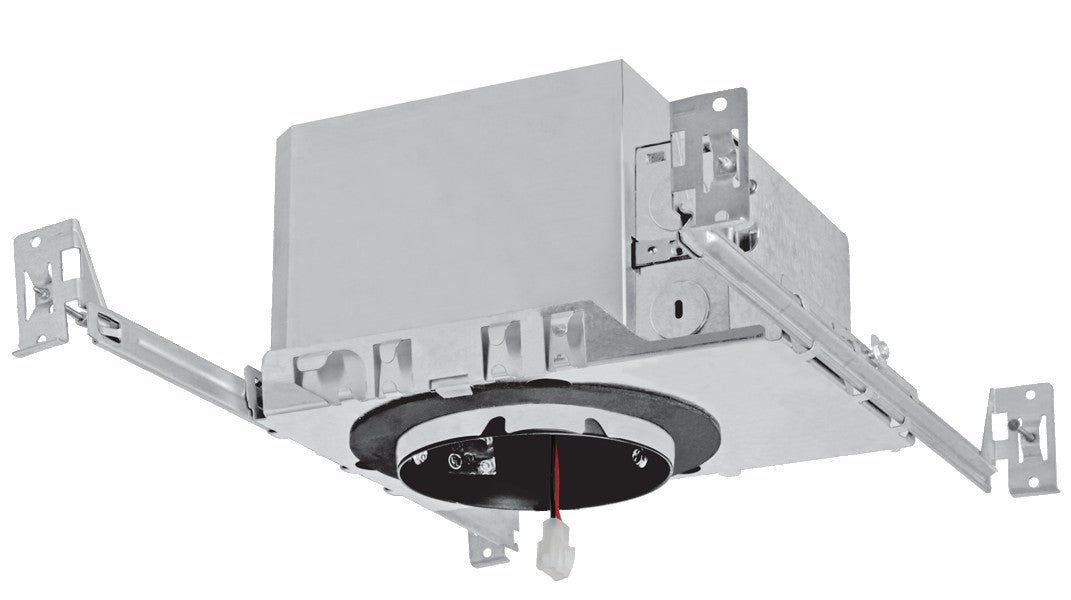

Elco - 4" Trimless Cedar System New Construction IC Airtight Housing w/Driver

$63.31 USD
$63.31 USD $126.62 USD

ELC-E4TL08ICA

Lumens
Dimming
Generation
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

Elco Lighting’s E4TL Cedar™ Series is a 4" IC Airtight housing designed for trimless installation in upscale residential and light commercial spaces. Compatible with Elco's Cedar™ System 4" Trimless LED Light Engines, it supports high-output lighting from 850 to 1600 lumens. Each model offers flicker-free dimming and optional emergency backup functionality, with compatibility for 2x8 construction.

Technical Specification

IC Airtight housing for trimless, high-end residential and light commercial, 850-1600 lumens.

  • UL Listed for direct contact with insulation.
  • Compatible with 2 x 8 construction.
  • Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
  • Flicker-Free Dimming.
  • USA designed and assembled.
  • Limited 5 year warranty.
  • For use with ELCO Cedar™ System 4" Trimless LED Light Engines.
  • 2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
Lumens: 850 lm - 1600 lm
Voltage: 120/277V or 120V
Dimmable: Triac/ELV or Triac/ELV/0-10V or Sunset
Power Factor: ≥0.95
Damp Location: Listed
Elco - 4" Trimless Cedar System New Construction IC Airtight Housing w/Driver

Resources & Downloads

Product SKU

Catalog Number Lumens Voltage Dimming
E4TL08ICA2 850 lm 120V Triac/ELV
E4TL08ICAD2 850 lm 120/277V Triac/ELV/0-10V
E4TL08ICASD 850 lm 120/277V Sunset
E4TL12ICA2 1250 lm 120V Triac/ELV
E4TL12ICAD2 1250 lm 120/277V Triac/ELV/0-10V
E4TL12ICASD 1250 lm 120/277V Sunset
E4TL16ICA2 1600 lm 120V Triac/ELV
E4TL16ICAD2 1600 lm 120/277V Triac/ELV/0-10V
E4TL16ICASD 1600 lm 120/277V Sunset

Additional Information

  • Flicker-free dimming support for modern residential and commercial applications.
  • Optional emergency backup rated for 90 minutes, 120/277 VAC, 60Hz.
  • UL listed for direct contact with insulation.
  • Designed for damp locations and 2x8 ceiling framing.
  • Generation 2 models are not cross-compatible with Generation 1.
