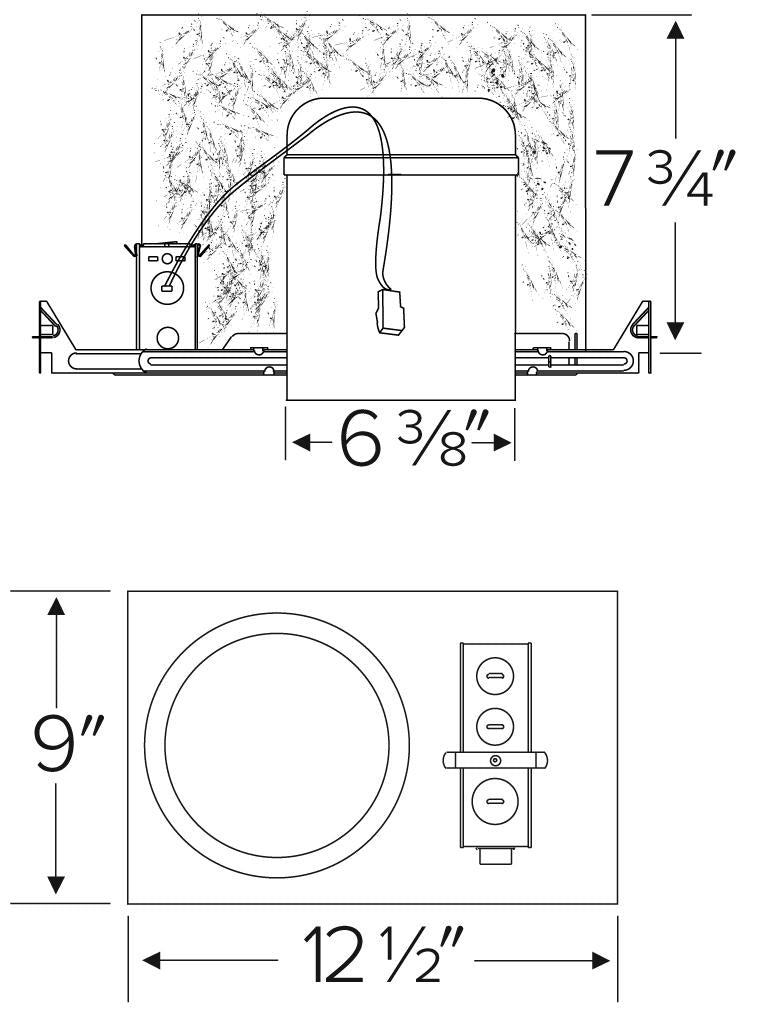

Elco - 6" New Construction 2-Hour Fire Rated IC Airtight Housing

6" fire rated new construction LED housing. Compatible with 6" LED inserts. 2-hour fire rated, can include step-down transformer. 22W

• IC Airtight for direct contact with insulation.
• UL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.
• Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
• Meets Title 24 requirements.
• Trims and inserts sold separately.

Wattage: 22W

Voltage: 120V or 277V

Damp Location : Listed

Resources & Downloads

• Specifications

•  Featured In: Electrical News

•  Cedar System Catalog (ELCAT1047)

•  Fire Rated Housings Catalog (ELCAT1050)

•  Fire Rated New Construction Housing Installation Instruction



Product SKU

Catalog Number	Description	Wattage	Voltage
EL76FICA		22W	120V
EL76FICA-7	with Step-down Transformer 277V to 120V	22W	277V
