ELCO EL49FICDXA 4" 0-10V New Construction 2-Hour Fire Rated Housing

$103.86 USD
$103.86 USD $207.72 USD

ELC-EL49FICDXA

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

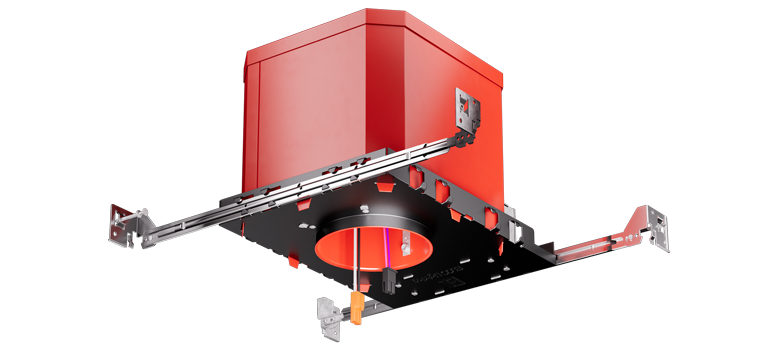

The Elco EL49FICDXA is a 4-inch new construction LED housing designed for 0-10V dimming applications. It features a 2-hour fire rating, making it suitable for installations requiring enhanced fire protection. The housing is IC-rated, allowing direct contact with insulation, and is airtight to meet energy efficiency standards.

Technical Specification

Model
EL49FICDXA
Type
4" 0-10V New Construction 2-Hour Fire Rated Housing
Voltage
120/277V
Wattage
14W
Dimming
0-10V
Fire Rating
2-Hour
IC Rating
Direct contact with insulation
Airtight
Meets ASTM E-283 airflow standards
Installation
Designed for ceiling plenums with 2x8 joists or taller; suitable for T-grid and drop ceiling applications
Junction Box
Equipped with multiple knockouts for flexible wiring options
Hanger Bars
Pre-installed, adjustable, and tool-free for easy installation
UL Listings
Damp Location, Wet Location (with appropriate trims), Feed Through
Compliance
California Title 24 Compliant

Additional Information

  • Fire Rating: 2-hour fire-rated housing suitable for installations requiring enhanced fire protection.
  • Dimming Capability: Compatible with 0-10V dimming systems, offering flexible lighting control.
  • Energy Efficiency: Airtight construction meets ASTM E-283 standards, reducing energy loss.
  • Installation Flexibility: Designed for use in ceiling plenums with 2x8 joists or taller; suitable for T-grid and drop ceiling applications.
  • Compliance: Meets California Title 24 energy efficiency standards.
