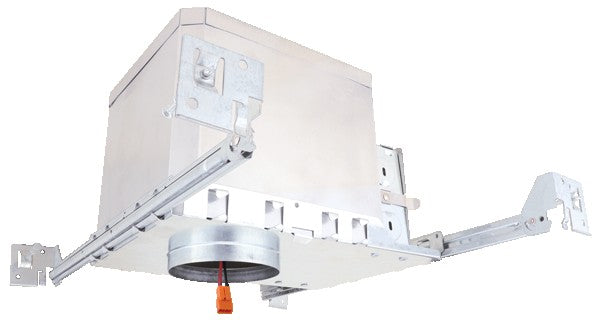

Elco Lighting 2" MAX. Adjustability IC Airtight New Construction Housing

Voltage 120V

Dimmable Triac/ELV

Technical Details
Construction:
• IC rated for direct contact with insulation, for use in IC or non-IC conditions.
• Housing accommodates up to ⅝" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength swivel
hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation
sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four
3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed swivel hanger bars with TrueNail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24"
and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange
allows for single-person installation while aligning the housings with the joists.
Electrical:
• Input Voltage: 120V AC.
• Inherently protected.
Dimmability:
• Dimmability based on lamp.
Lamp: Designed for use with ELCO 2" PEX Diecast Trims and KotoTM LED module
Listings:
• cULus Listed for US and Canada.
• UL Listed for Damp Location.
• UL Listed for Wet Location with select trims.
• UL Listed for Feed Through.
• UL Listed for Direct Contact with Insulation and Combustible Material.
• Airtight per ASTM E-283.
• Install a JA8-2016-E lamp for Title 24 Compliance.
