Product Information

Overview

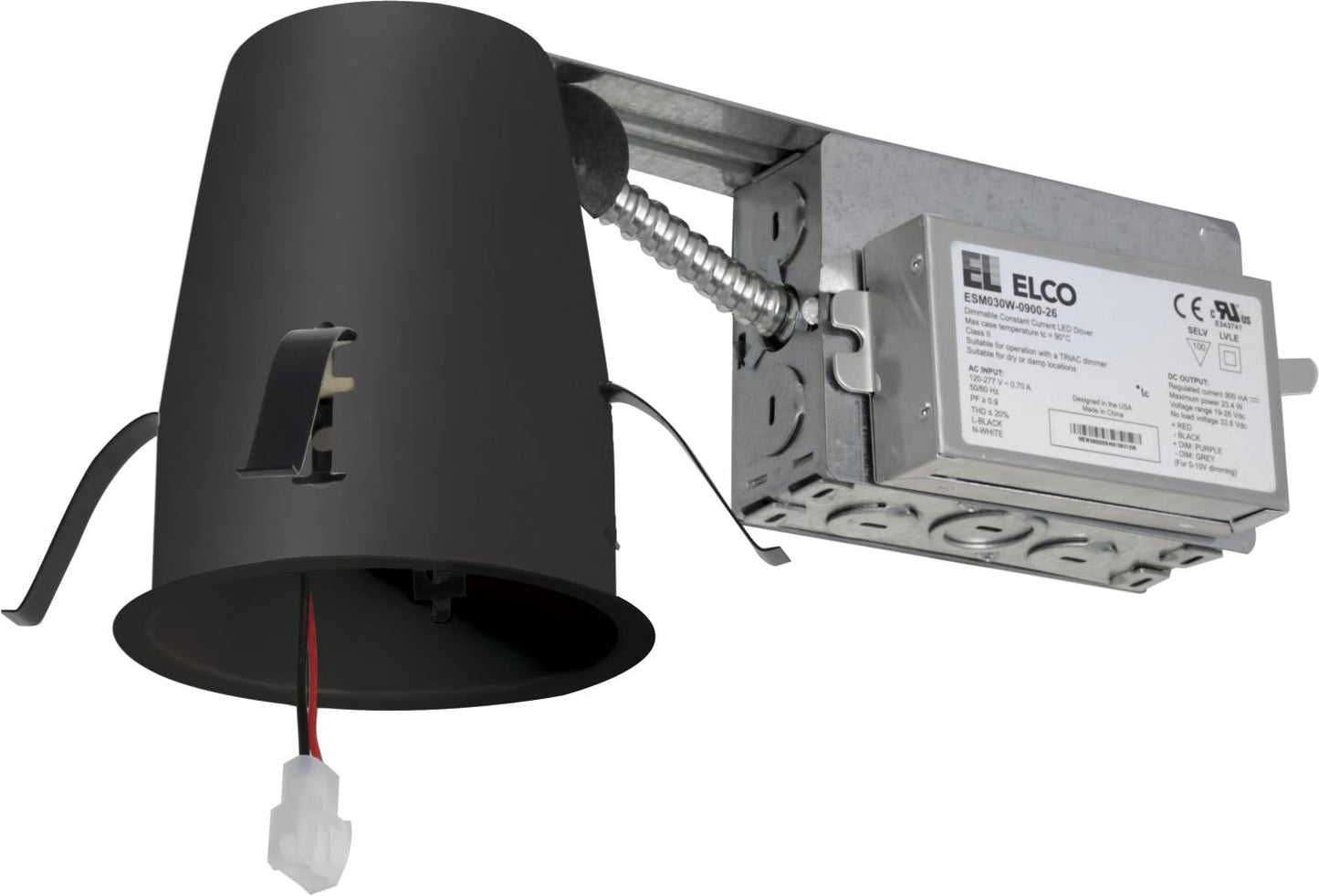

The Elco Lighting E3LRC08ICAD2 is a 3" IC-rated airtight remodel housing designed for LED light engines with advanced dimming support. Delivering up to 850 lumens and compatible with Triac, ELV, and 0-10V dimming systems, this Generation 2 housing is an ideal solution for retrofit installations in insulated ceilings requiring versatility, efficiency, and control.

Technical Specification

3" IC Airtight Remodel Housing with Driver

IC Airtight remodel housing for high-end residential and light commercial, 850 lumens.
  • UL Listed for direct contact with insulation.
  • Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
  • Flicker-Free Dimming.
  • USA designed and assembled.
  • Limited 5 year warranty.
  • For use with ELCO Cedar™ System 3" LED Light Engines.
  • 2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
Lumens 850 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV or Triac/ELV/0-10V or Sunset
Power Factor  ≥0.95

Damp Location  Listed

Product Specifications
Dimmer Compatibility Chart

Additional Information

  • IC-rated for use in direct contact with insulation
  • Airtight construction improves thermal efficiency and meets code
  • Supports a wide range of dimming systems for project flexibility
  • Compact 3" profile ideal for low-clearance and architectural ceilings
  • Suitable for retrofit applications in finished ceilings
  • G2 model includes enhanced driver performance and thermal control
