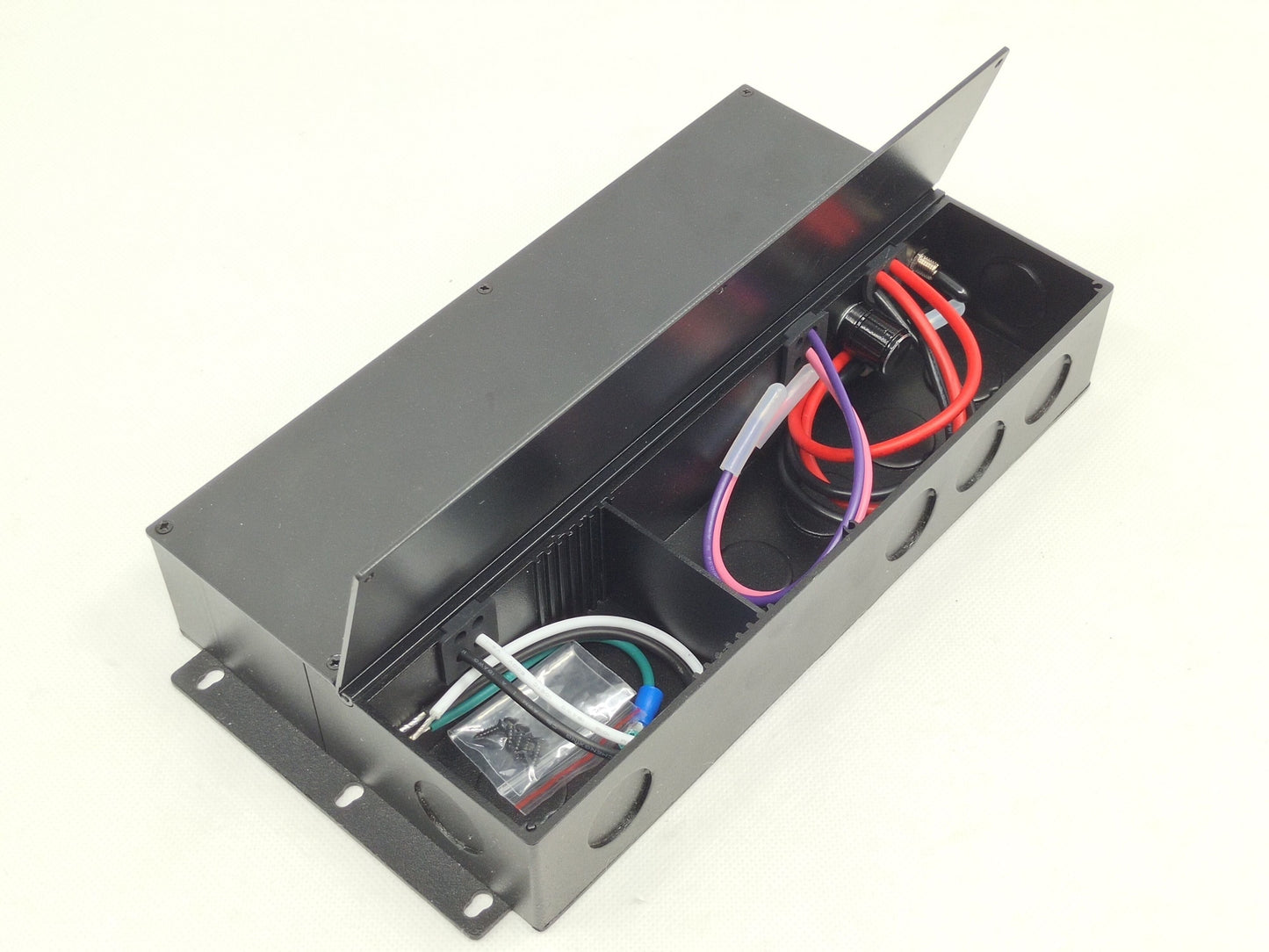

EMCOD ECV150-24DC-UD Class 2 Electronic Class P UNIV 5 in 1 dimming

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C

Housing
The actual transformer 150W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 4X rated
Wiring compartment has 8 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 10, W = 5.2, D = 1.67
Weight (LBs): 3.96

Electrical Parameters
Input Voltage: 100-277V 50/60Hz
Max. input current at full load: 1.8A
Output voltage without load: 24.1VDC
Output voltage fully loaded: 24VDC
Max. Total Wattage: 150W
Max. Output Current: 6.3A
Efficiency: 86%
Load regulation: 0.5%
