EMCOD ECV25-12DC - 25W 12V DC - Dimmable Electronic Constant Voltage LED Driver

EMCOD ECV25-12DC - 25W 12V DC - Dimmable Electronic Constant Voltage LED Driver

EMC-ECV25-12DC

Default Title

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information


4010300
Conforms to UL STD. 1310
Certified to CSA
STD. C22.2 № 223

Spec Sheet

Installation Instructions

Class 2 Electronic Triac Dimmable
Plastic Suitable For Dry And Damp Location Enclosure

Transformer

PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads: Terminal Block
Output leads: Terminal Block

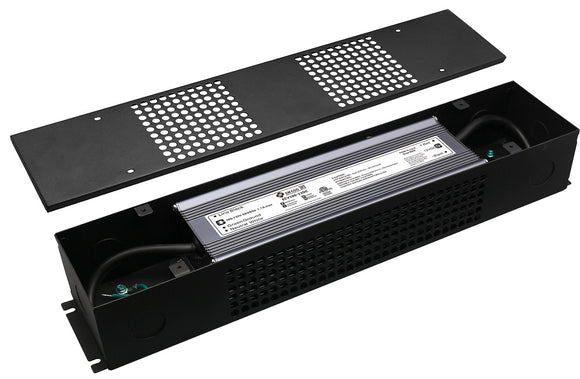

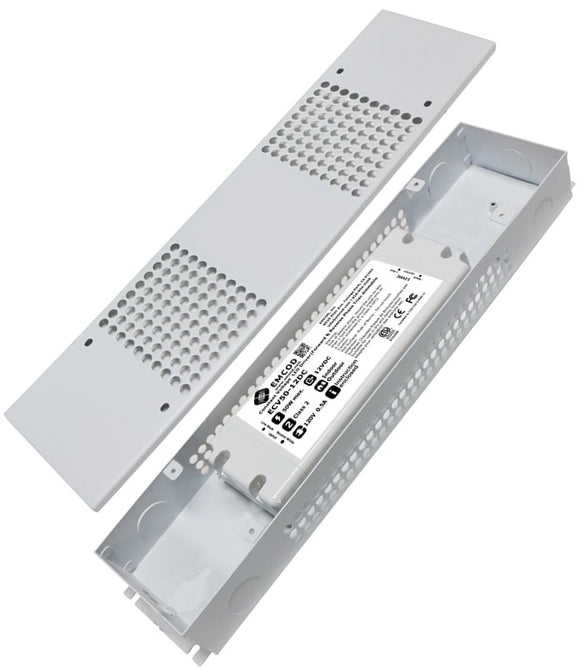

Housing

The actual transformer 25W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire
compartment, IP 20 rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 13.5, W = 3.03, D = 1.45
Weight (LBs): 1.6

Electrical Parameters

Input Voltage: 120V 50/60Hz
Max. input current: 0.58A at full load
Output voltage without load: 24.5VDC
Output voltage fully loaded: 23.5VDC
Max. Total Wattage: 60W
Max. Output Current: 2.5A
Efficiency: 89%
Load regulation: 5%

Class 2 junction box is optional
