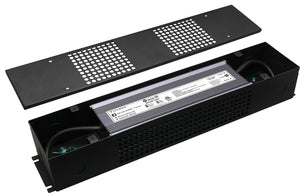

EMCOD ECV96-24DC - 96W 24V DC - Dimmable Electronic Constant Voltage LED Driver
EMC-ECV96-24DC
This product has been discontinued, but we're here to help.
If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.
Contact Us
Product Information
Technical Specification
 4010300
|
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
Class 2 Electronic Triac Dimmable
Plastic Suitable For Dry And Damp Location Enclosure
Plastic Suitable For Dry And Damp Location Enclosure
Transformer
Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Housing
The actual transformer 96W is encapsulated in the enclosure
The enclosure is Aluminum with wire compartment, IP 67 rated
Wiring compartment has 4 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 14.3, W = 3.03, D = 2.24
Weight (LBs): 3.7
Electrical Parameters
| Input Voltage: | 120V 50/60Hz |
| Max. input current: | 1.5A at full load |
| Output voltage without load: | 24.1VDC |
| Output voltage fully loaded: | 24VDC |
| Max. Total Wattage: | 96W |
| Max. Output Current: | 4A |
| Efficiency: | 85% |
| Load regulation: | 1% |
| Ripple: | 5% |
