Product Information

Overview

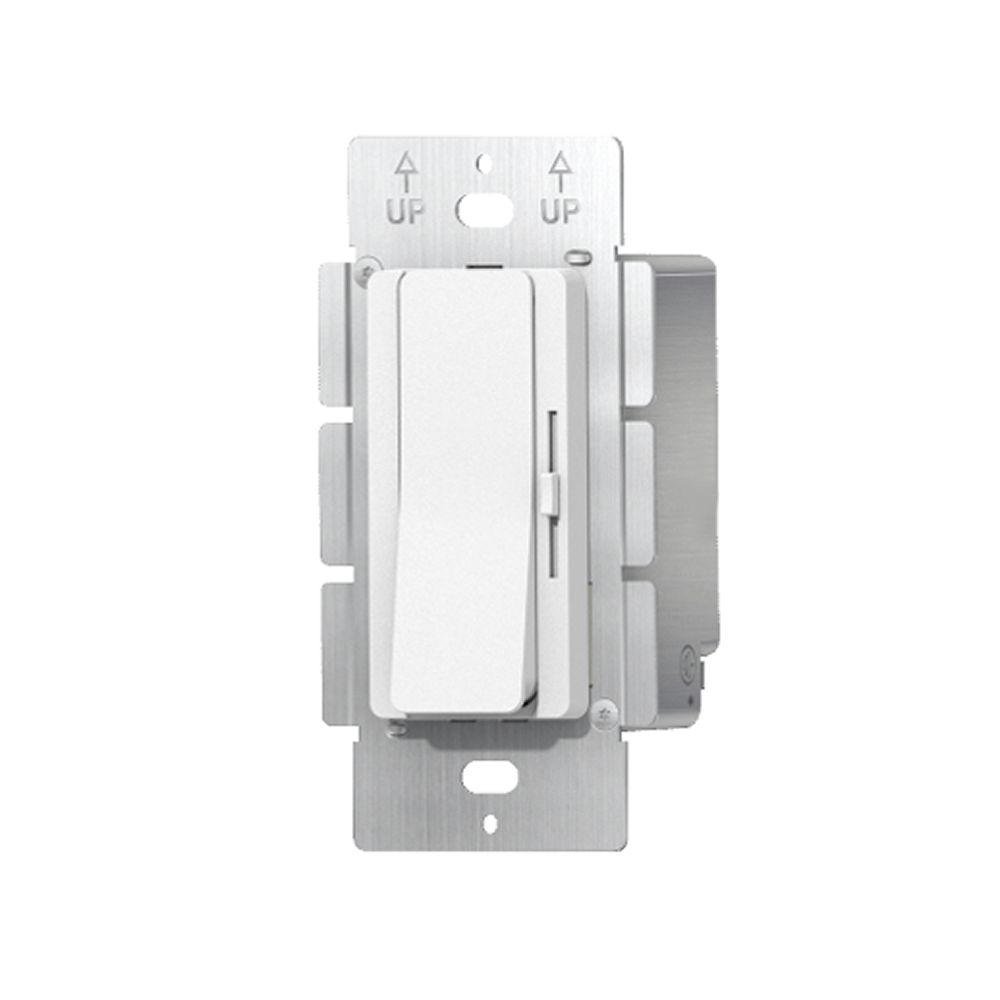

The Emcod EDD60 Dim+Drive Series is a compact, integrated LED driver and dimmer designed for modern low-voltage lighting applications. Supporting both 12VDC and 24VDC constant voltage outputs, this wall-mounted unit eliminates the need for separate dimmers and drivers. Ideal for residential and commercial use, it delivers smooth, flicker-free dimming from 0.3% to 100%, includes a built-in active PFC function, and resolves common compatibility issues. The Dim+Drive is suitable for dry and damp locations and is available in both standard dimming and tunable CCT versions.

Technical Specification

Model
EDD60
Input Voltage
120 VAC
Output Voltage
12VDC or 24VDC (Constant Voltage)
Dimming Range
0.3% – 100% (Flicker-Free)
Dimming Technology
16kHz PWM Output, Gamma 2.2 Curve
Design Features
Built-in dimmer with on/off switch, fine-tune output, 3-way compatible
Power Factor Correction
Built-in Active PFC
Protections
Short Circuit, Overload, Over Temperature
Cooling Method
Free Air Convection
Installation Environment
Dry and Damp Locations (US)
Application
LED Strip Lighting and Low-Voltage LED Systems
Spec Sheet
View

Additional Information

  • Integrated wall-mounted unit combines dimmer and driver
  • Helps eliminate compatibility issues between drivers and dimmers
  • Fine-tuning of output voltage available
  • Supports both single-pole and 3-way applications
  • Flicker-free output ideal for residential and commercial installations
