Emcod - EDD96 Dim+Drive 2 In 1 Precise Control True Power

$119.00 USD
$119.00 USD

EMC-EDD96-24DC

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Available at 7950 Deering Ave

This item is available and ready.

Check availability at other stores
Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

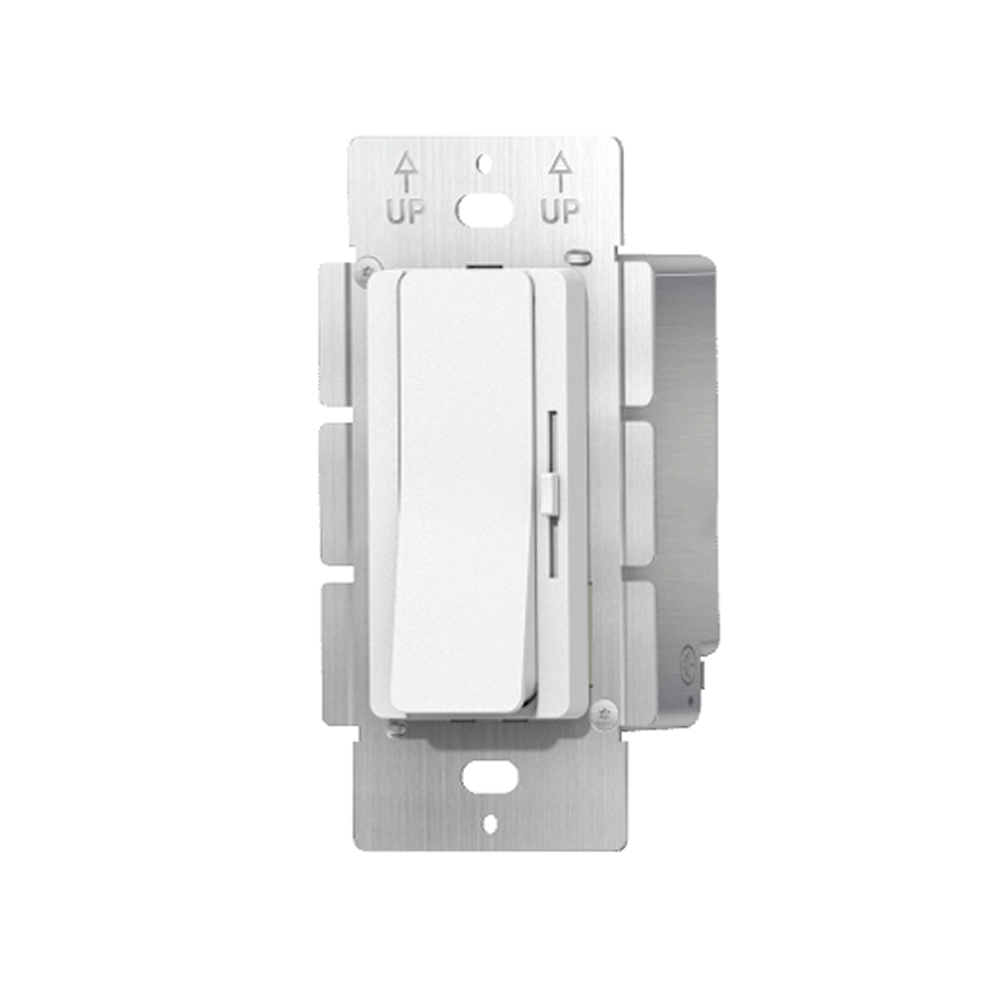

The Emcod EDD96-24DC Dim+Drive Series is a 96W integrated LED driver and dimmer designed for seamless low-voltage lighting control. Delivering 24VDC constant voltage output, this all-in-one wall-mounted unit replaces the need for separate drivers and dimmers. It’s ideal for residential and commercial installations, offering flicker-free dimming from 0.3% to 100%, built-in active PFC, and reliable performance for LED strips and other low-voltage lighting systems. The unit is suitable for dry and damp locations and ensures smooth control with no compatibility issues.

Technical Specification

Model
EDD96-24DC
Input Voltage
120 VAC
Output Voltage
24VDC (Constant Voltage)
Output Power
96 Watts
Dimming Range
0.3% – 100% (Flicker-Free)
Dimming Technology
16kHz PWM Output, Gamma 2.2 Curve
Design Features
Built-in dimmer with on/off switch, fine-tune output, 3-way compatible
Power Factor Correction
Built-in Active PFC
Protections
Short Circuit, Overload, Over Temperature
Cooling Method
Free Air Convection
Installation Environment
Dry and Damp Locations (US)
Application
LED Strip Lighting and Low-Voltage LED Systems
Spec Sheet
View

Additional Information

  • Integrated dimmer + driver in one compact unit
  • Eliminates compatibility issues between switches and drivers
  • Single-pole and 3-way switch compatible
  • Fine voltage adjustment for precise control
  • Ideal for undercabinet, accent, and general LED lighting applications
