EMCOD EGP150P12AC - 150W 12/24V AC - Indoor/Outdoor Dimmable Magnetic Power Supply - Powder Coated Black Steel
EMCOD EGP150P12AC - 150W 12/24V AC - Indoor/Outdoor Dimmable Magnetic Power Supply - Powder Coated Black Steel
Regular price
$100.80 USD
Sale price
$100.80 USD
Regular price
$201.60 USD
Unit price
per
EMC-EGP150P
Couldn't load pickup availability
Payment methods
Secure your shopping experience with various safe and trusted payment methods.
Need Help?
Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.
Contact Us
Product Information
Technical Specification
 |
Conforms to UL STD. 2108 |
| Certified to CSA STD. C22.2 № 250.0, |
|
Magnetic Outdoor
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure

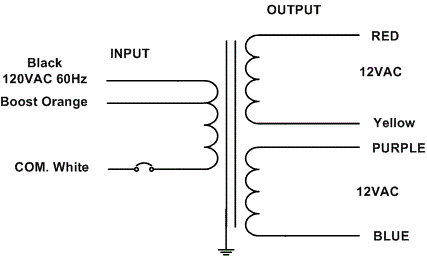

Transformer
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 2A
per circuit
Housing
The actual transformer 150W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7.5, W = 3.1, D = 2.94
Weight (LBs): 0.06
Electrical Parameters
| Input Voltage: | 120V 60Hz | |
| Max. input current: | 1.5A at full load | |
| Output voltage without load: | 13.9/ 25.8VAC | |
| Output voltage fully loaded: | 11.8/ 23.8VAC | |
| Max. Total Wattage: | 150W | Max. per circuit:75W |
| Max. Output Current: | 12.5/ 6.2A per circuit. | |
| Efficiency: | 87% | |
