EMCOD - EM6-300S12DC Transformer - Magnetic DC Driver - 300W - 6X12VDC
EMCOD - EM6-300S12DC Transformer - Magnetic DC Driver - 300W - 6X12VDC
EM6-300S12DC
Regular price
$220.40 USD
Sale price
$220.40 USD
Regular price
$440.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Magnetic Outdoor
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
 4008104 |
Conforms to UL STD. 2108 |
|
Certified to CSA STD. C22.2 № 250.0 |
|
| model EM6 | |

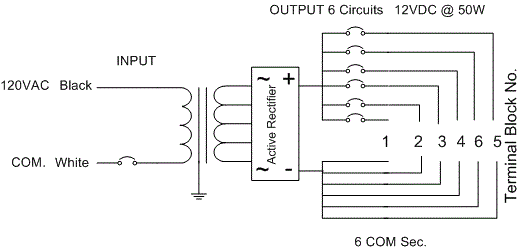

Transformer
Dimmable with any LV magnetic dimmer as long as you cover dimmer’s
min load.
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads: Terminal Block
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 5A
Thermal manually reset secondary breaker 5A per circuit
Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 13 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 5.69, D = 3.43
Weight (LBs): 10
Electrical Parameters
| Input Voltage: | 120V 60Hz | |
| Max. input current: | 3A at full load | |
| Output voltage without load: | 12.8VDC | |
| Output voltage fully loaded: | 11.8VDC | |
| Max. Total Wattage: | 300W | Max. per circuit:50W |
| Max. Output Current: | 4.1A per circuit. | |
| Efficiency: | 93% | |
| Load regulation: | 0.08% | |
