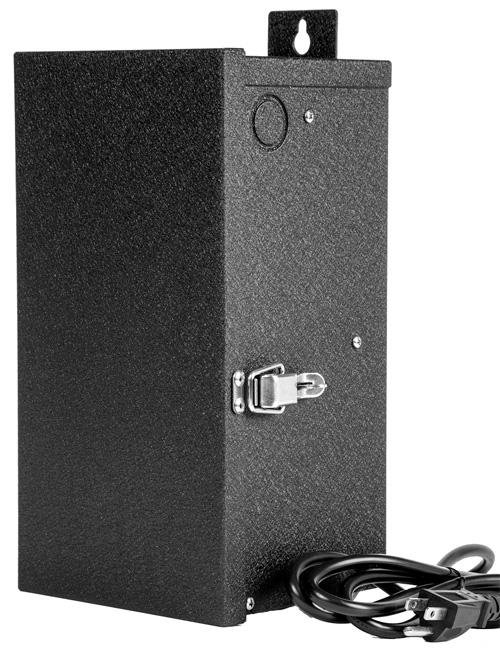

EMCOD EMT900-E - 900W 12/15V AC - Landscape Multi-Tap Magnetic Transformer - Powder Coated Black Steel
EMCOD EMT900-E - 900W 12/15V AC - Landscape Multi-Tap Magnetic Transformer - Powder Coated Black Steel
EMT900-E
Regular price
$342.20 USD
Sale price
$342.20 USD
Regular price
$684.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
 |
Conforms to UL STD. 1838 |
| Certified to CSA STD. C22.2 № 250.0, 250.7 |
|
Magnetic Outdoor Non Dimmable MT
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Magnetic manually reset secondary breaker 25A per circuit
Timer and photocell build in options
Housing
The actual transformer 900W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 10 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 15.75, W = 7.87, D = 7
Weight (LBs): 3.8
Electrical Parameters
| Input Voltage: | 120V 60Hz | |
| Max. input current: | 7.5A at full load | |
| Output voltage without load: | 12/ 13/ 14/ 15VAC | |
| Output voltage fully loaded: | 11.5/ 12.5/ 13.5/ 14.5VAC | |
| Max. Total Wattage: | 900W | Max. per circuit:300W |
| Max. Output Current: | 25/ 23/ 21/ 20A per circuit. | |
| Efficiency: | 94% | |
| Load regulation: | 4% | |
