EMCOD EPC40W - 40W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer
EMCOD EPC40W - 40W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer
EPC40W
Regular price
$76.85 USD
Sale price
$76.85 USD
Regular price
$153.70 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
 |
Conforms to UL STD. 1838 |
| Certified to CSA STD. C22.2 № 250.0, 250.7 |
|
Magnetic Outdoor Non Dimmable MT
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Thermal manually reset secondary breaker 6A

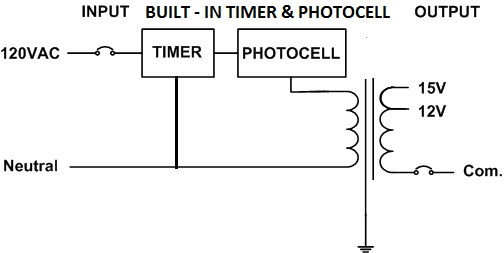

Timer and photocell build in options
Housing
The actual transformer 40W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.5, W = 3.75, D = 4.4
Weight (LBs): 0.5
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Max. input current: | 0.4A at full load |
| Output voltage without load: | 12/ 15VAC |
| Output voltage fully loaded: | 11.5/ 14.5VAC |
| Max. Total Wattage: | 40W |
| Max. Output Current: | 3.3/ 2.7A |
| Efficiency: | 90% |
