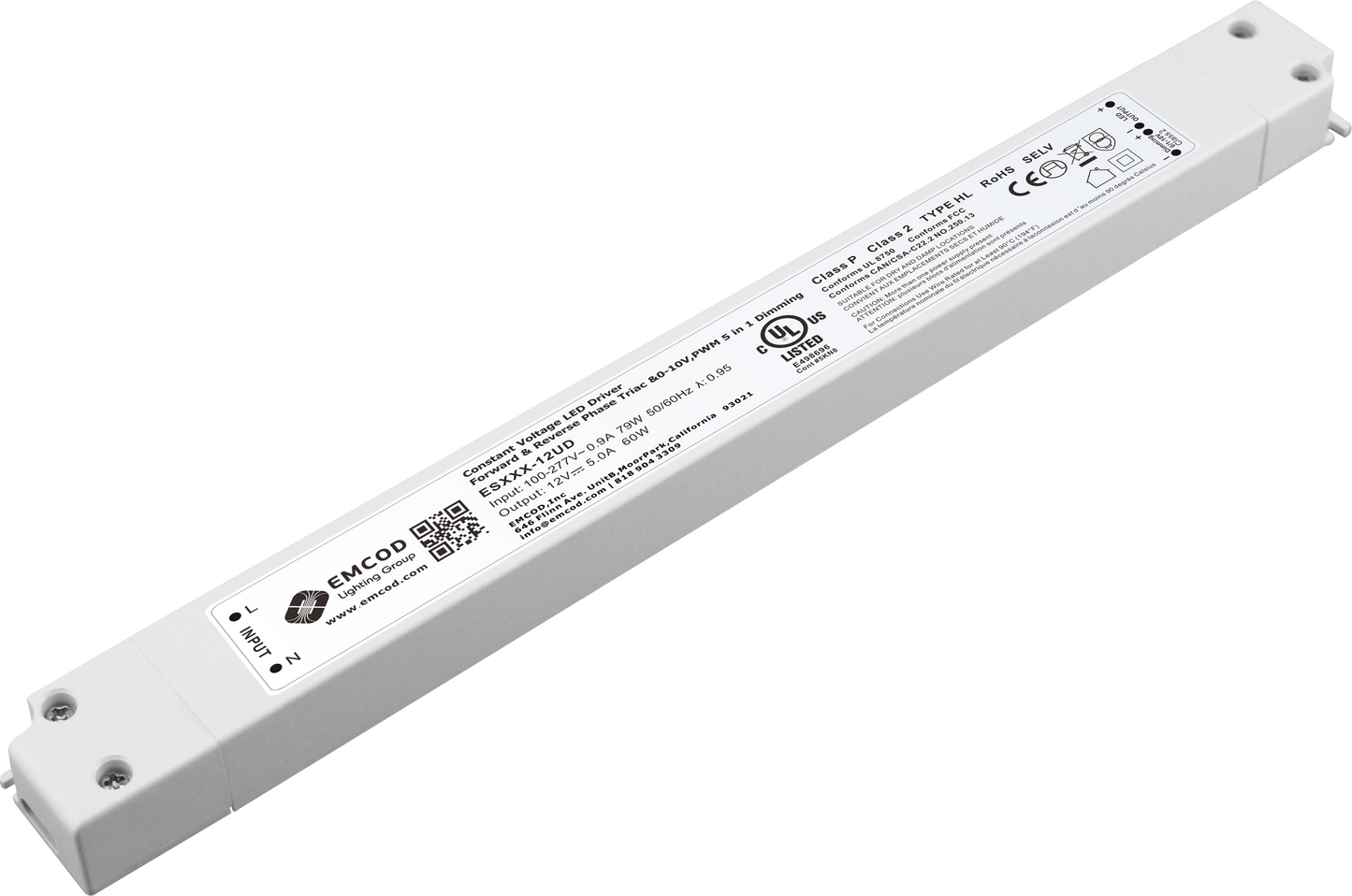

Emcod ES60-24UD Series Class 2 Electronic UNIV 5 in 1 dimming

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block

Housing
The actual transformer 30W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire compartment, IP 20 rated
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 11.5, W = 1.18, D = 0.73
Weight (LBs): 0.53

Single Circuit: 24VDC 20kHZ PWM
Total Wattage: 60W max
Input Voltage: 100-277V 50/60Hz

Product Specifications
Installation Guide
