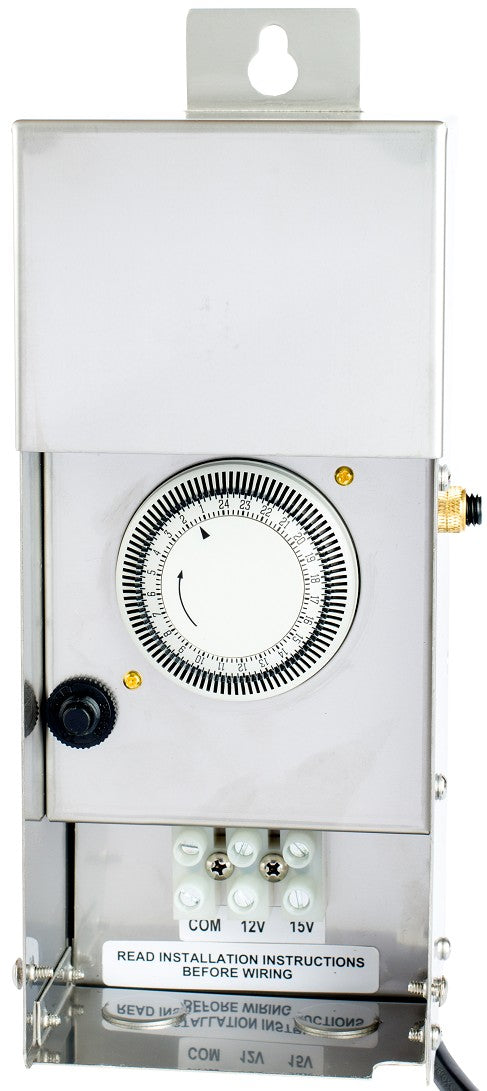

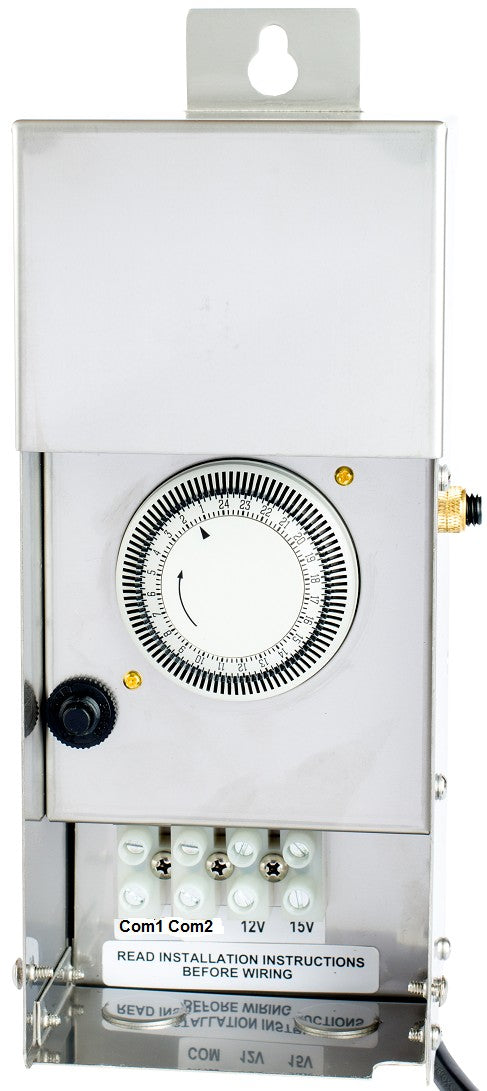

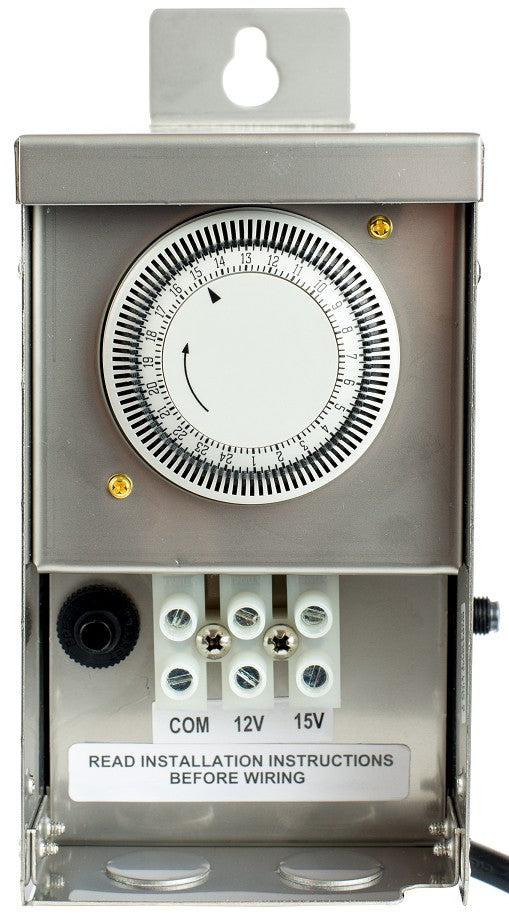

EMCOD ESL200W - 200W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer
EMCOD ESL200W - 200W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer
ESL200W
Regular price
$123.25 USD
Sale price
$123.25 USD
Regular price
$246.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
![]() |
Conforms to UL STD. 1838 |
Certified to CSA STD. C22.2 № 250.0, 250.7 |
|
Magnetic Outdoor Non Dimmable MT
Stainless Steel Enclosure
Stainless Steel Enclosure
Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Thermal manually reset secondary breaker 15A
Timer and photocell build in options
Housing
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 9
Electrical Parameters
Input Voltage: | 120V 60Hz |
Max. input current: | 1A at full load |
Output voltage without load: | 12/ 15VAC |
Output voltage fully loaded: | 11.5/ 14.5VAC |
Max. Total Wattage: | 200W |
Max. Output Current: | 16.6/ 13.3A |
Efficiency: | 90% |
