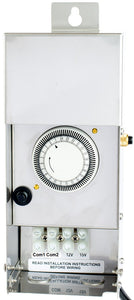

EMCOD ESL300W - 300W 12/15V AC - Manual Timer Landscape Low Voltage LED Lighting Transformer
EMCOD ESL - EPC Stainless Steel Landscape Low Voltage Lighting Transformer | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: ESL300W
 |
Conforms to UL STD. 1838 |
| Certified to CSA STD. C22.2 № 250.0, 250.7 |
|
Magnetic Outdoor Non Dimmable MT
Stainless Steel Enclosure
Stainless Steel Enclosure
Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Timer and photocell build in options
Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 14
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Max. input current: | 2.5A at full load |
| Output voltage without load: | 12/ 15VAC |
| Output voltage fully loaded: | 11.5/ 14.5VAC |
| Max. Total Wattage: | 300W |
| Max. Output Current: | 25/ 20A |
| Efficiency: | 90% |
