EMCOD - ML10S24DC Transformer - Magnetic LED Driver - 10W - 24VDC
EMCOD - ML10S24DC Transformer - Magnetic LED Driver - 10W - 24VDC
ML10S24DC
Regular price
$46.40 USD
Sale price
$46.40 USD
Regular price
$92.80 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
Class 2 Magnetic Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
![]() 4008104 |
Conforms to UL STD. 1310 |
Certified to CSA STD. C22.2 № 223 |
|
model EM10 | |

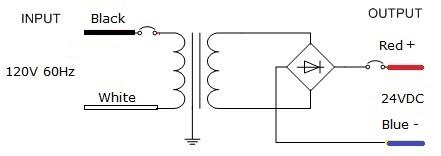

Transformer
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 0.8A
Thermal self reset secondary breaker 0.8A
Housing
The actual transformer 10W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable connectors Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Electrical Parameters
Input Voltage: | 120V 60Hz |
Max. input current: | 0.11A at full load |
Output voltage without load: | 28VDC |
Output voltage fully loaded: | 23.5VDC |
Max. Total Wattage: | 10W |
Max. Output Current: | 0.4A |
Efficiency: | 83% |
