EMCOD - ML35S24AC Transformer - Magnetic LED Driver - 35W - 24VAC
EMCOD - ML35S24AC Transformer - Magnetic LED Driver - 35W - 24VAC
ML35S24AC
Regular price
$56.55 USD
Sale price
$56.55 USD
Regular price
$113.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
 4008104 |
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
| model EM35 | |
Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)

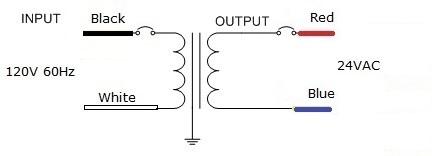

Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 0.8A
Thermal self reset secondary breaker 3A
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 0.8A
Thermal self reset secondary breaker 3A

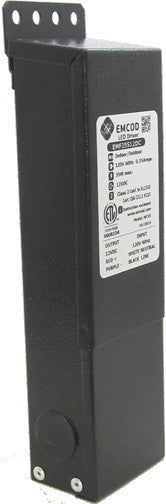

Housing
The actual transformer 35W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 1.8
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 1.8
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Max. input current: | 0.3A at full load |
| Output voltage without load: | 26.2VAC |
| Output voltage fully loaded: | 23.6VAC |
| Max. Total Wattage: | 35W |
| Max. Output Current: | 1.4A |
| Efficiency: | 85% |
