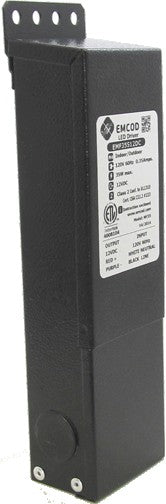

EMCOD - ML50S12DC Transformer - Magnetic LED Driver - 50W - 12VDC
EMCOD - ML50S12DC Transformer - Magnetic LED Driver - 50W - 12VDC
Regular price
$60.20 USD
Sale price
$60.20 USD
Regular price
$120.40 USD
Unit price
per
EMC-ML50S12DC
Couldn't load pickup availability
Payment methods
Secure your shopping experience with various safe and trusted payment methods.
Need Help?
Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.
Contact Us
Product Information
Technical Specification
Class 2 Magnetic Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
 4008104 |
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
| model EM50 | |
Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Housing
The actual transformer 50W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 2.1
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 2.1
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Output voltage without load: | 13.2VDC |
| Output voltage fully loaded: | 11.6VDC |
| Max. Total Wattage: | 50W |
| Max. Output Current: | 4.1A |
| Efficiency: | 85% |
