EMCOD - ML60S12AC Transformer - Magnetic LED Driver - 60W - 12VAC
EMCOD - ML60S12AC Transformer - Magnetic LED Driver - 60W - 12VAC
Regular price
$79.80 USD
Sale price
$79.80 USD
Regular price
$159.60 USD
Unit price
per
EMC-ML60S12AC
Couldn't load pickup availability
Payment methods
Secure your shopping experience with various safe and trusted payment methods.
Need Help?
Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.
Contact Us
Product Information
Technical Specification
Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
 4008104 |
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
| model EM20 | |
Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 1A
Thermal manually reset secondary breaker 5A
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 1A
Thermal manually reset secondary breaker 5A

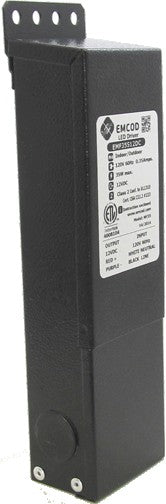

Housing
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 5 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.13, W = 3.93, D = 1.59
Weight (LBs): 3.85
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 5 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.13, W = 3.93, D = 1.59
Weight (LBs): 3.85

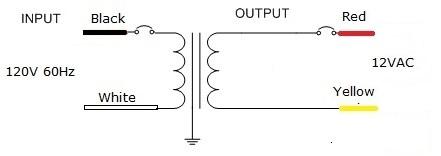

Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Output voltage without load: | 13.2VAC |
| Output voltage fully loaded: | 11.6VAC |
| Max. Total Wattage: | 60W |
| Max. Output Current: | 5A |
| Efficiency: | 85% |
