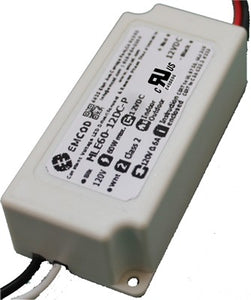

EMCOD MLE60-12DC-P - 60W 12V DC - Dimmable Electronic LED Driver
EMCOD MLE60-12DC-P - 60W 12V DC - Dimmable Electronic LED Driver
EMC-MLE60-12DC-P
Regular price
$50.40 USD
Sale price
$50.40 USD
Regular price
$100.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
 E498696
|
Conforms to UL STD. 8750 and 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
| model MLE60-12DC-P | |
Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C
per circuit
Housing
The actual transformer 288W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 9 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 5.04, W = 10.94, D = 1.81
Weight (LBs): 4.4
Electrical Parameters
| Input Voltage: | 110-277V 50/60Hz | |
| Max. input current: | 3A at full load | |
| Output voltage without load: | 24.1VDC | |
| Output voltage fully loaded: | 24VDC | |
| Max. Total Wattage: | 288W | Max. per circuit:96W |
| Max. Output Current: | 4A per circuit. | |
| Efficiency: | 90% | |
| Load regulation: | 1% | |
| Ripple: | 5% | |
