EMCOD MLE60-12DC-UD - 60W 12V DC - Dimmable Electronic LED Driver
EMCOD Lighting - LED drivers, Lighting and Transformers | EMCOD MLE-UD Series - Main-LED Electronic Universal Driver | Products |SKU: MLE60-12DC-UD
 E498696
|
Conforms to UL STD. 8750 and 1310 |
| Certified to CSA STD. C22.2 № 250.0 |
|
| model MLE360-12DC-UD | |
|
Spec Sheet Installation Instructions |
Transformer

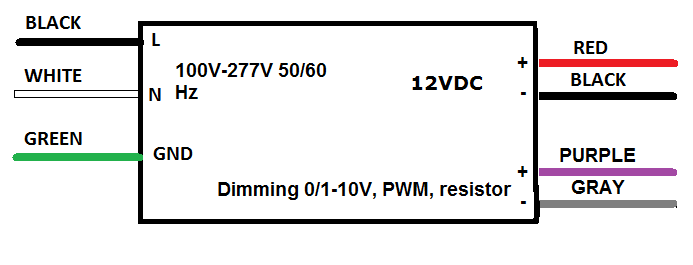

PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C
Housing
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, with built-in class 2 wiring
compartment, dry and damp location rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7.4, W = 3.62, D = 1.02
Weight (LBs): 0.24
Electrical Parameters
| Input Voltage: | 100-277V 50/60Hz |
| Max. input current: | 0.9A |
| Output voltage without load: | 12.1VDC |
| Output voltage fully loaded: | 12VDC |
| Max. Total Wattage: | 60W |
| Max. Output Current: | 5A |
| Efficiency: | 90% |
| Load regulation: | 1% |
| Ripple: | 5% |
