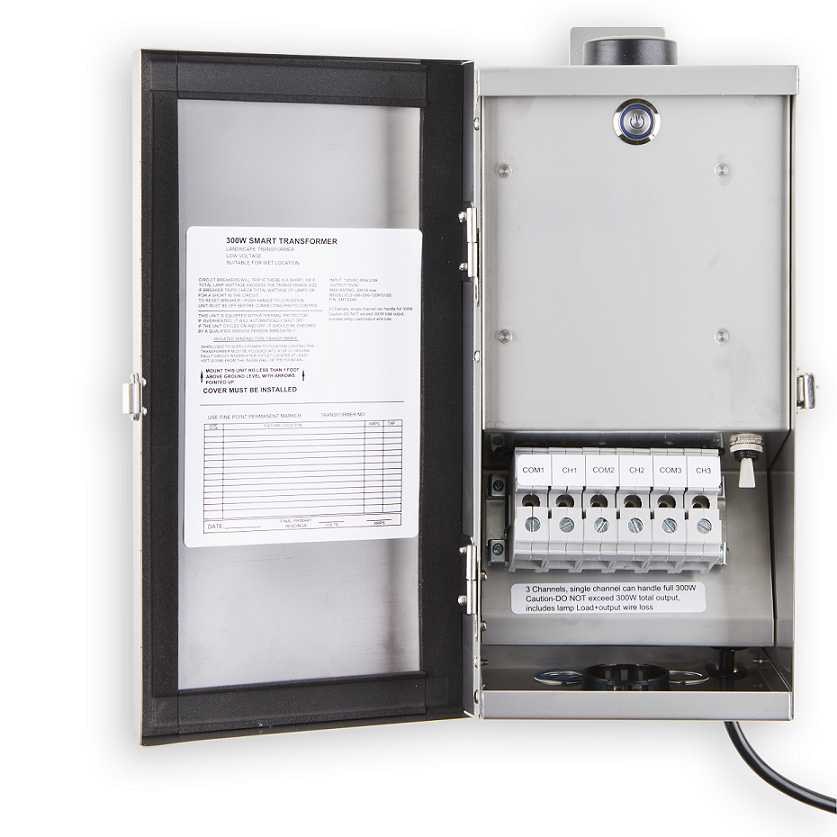

EMCOD SMT300W 300W Landscape Transformer

Name: EMCOD SMT300W 300W Landscape Transformer
Brand: EMCOD Lighting
SKU: EMCOD-SMT300W
Price: 319.0 USD
Availability: InStock

$319.00 USD

Up to 44% off

$319.00 USD

$319.00 USD ~~$574.20 USD~~

Shipping calculated at checkout.

EMCOD-SMT300W

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Transformer

Non Dimmable Temperature class B(130°C) Input leads: Line cord Output leads: Terminal Block Magnetic manually reset secondary breaker 20A per circuit

Housing

The actual transformer 300W is encapsulated in the enclosure The enclosure is Stainless Steel, NEMA 3R rated Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded Dimensions (inch): H = 13.9, W = 6.4, D = 4.9 Weight (LBs): 15.75

Electrical Parameters

Input Voltage:	120V 60Hz
Max. input current:	2.5A at full load
Output voltage without load:	15VAC
Output voltage fully loaded:	14VAC
Max. Total Wattage:	300W	Max. per circuit:100W
Max. Output Current:	6.7A per circuit.
Efficiency:	90%

Download the Spec Sheet

Download the Installation Instructions
