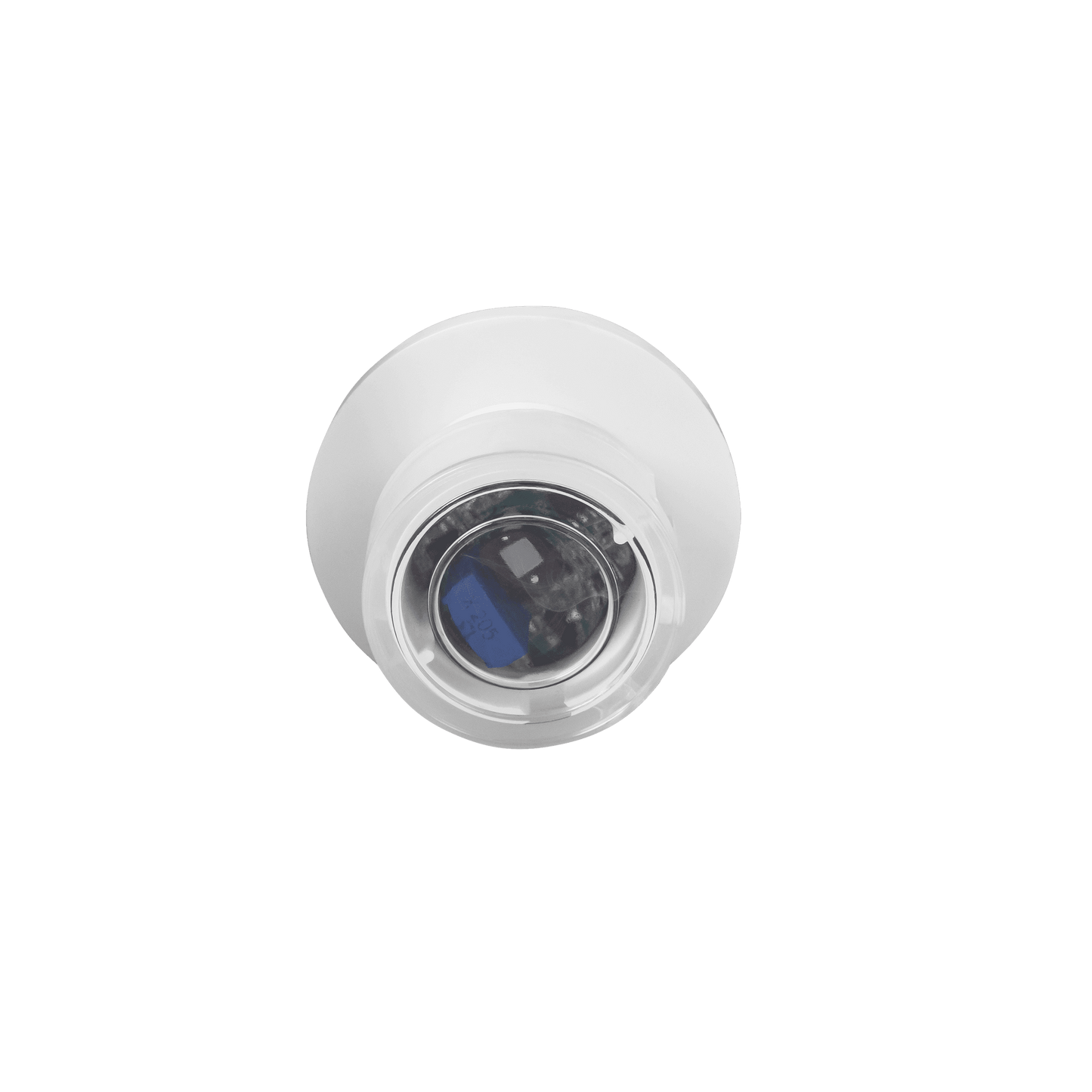

Enerlites Enerlites-MPL-010 Indoor Daylight Harvesting Sensor – 24V

OCCUPANCY/VACANCY SENSOR WITH 0-10V DIMMER SWITCH

The Enerlites MPL-010 Daylight Harvesting Sensor is a low voltage photosensor designed for use in lighting control and building automation systems. It features a 0-10 volt output signal, a precise Fresnel lens with a 60 degree cone of reference, and is pre-calibrated to 140 foot candles. Ideal for meeting California Title 24 and ASHRAE 90.1 standards, this sensor is perfect for offices, lobbies, classrooms, and retail locations. It has a fixed 15 second response time and a wide temperature range of -40°F to 140°F.

FEATURES

• Closed loop, daylighting photosensor mounted downward from the ceiling
• Factory calibrated to 140 foot candles
• Operates as a stand-alone or paired with ENERLITES motion ceiling sensors

SPECIFICATIONS

• Input Voltage: 12 - 24VDC
• Indoor Photocell
• Low Output: 0 VDC
• High Output: 10 VDC
• Foot Candle: 0-160FC
• Load Rating: 2mA - 50mA
• Model Number: MPL-010
