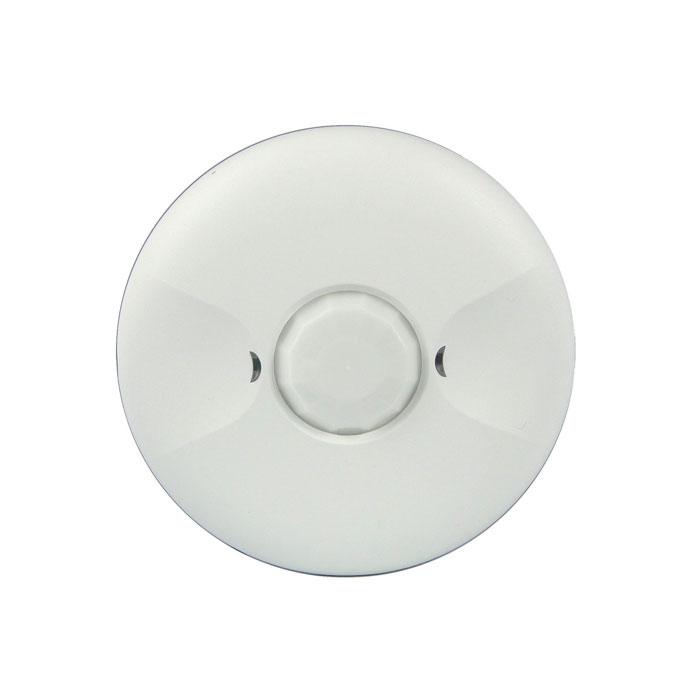

Enerlites MPC-50L-W Low Voltage PIR Ceiling Mount Sensor

Enerlites MPC-50L-W Low Voltage PIR Ceiling Mount Sensor

$45.99 USD
$45.99 USD $114.97 USD

ENE-MPC-50L-W

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Technical Specification

The MPC-50L is a Commercial Grade 24VDC Low Voltage Ceiling Mount PIR Occupancy Sensor that turning lights ON/OFF based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.

Specifications

  • Voltage: 24VDC
  • Current Consumption: 9mA
  • Passive Infrared technology (PIR)
  • Adjustable Light Level: 10FC-150FC
  • Multi-level, 360° Fresnel lens for superior occupancy detection
  • Operating Temperature: 32° to 131°F (0°to 55°C)
  • Adjustable Time Delay: 5 sec.-30min (DIP switch)
  • Walk-Through Mode: 3 minutes if no activity after 30 sec.
  • Test Mode: 5 sec. upon initial power-up or DIP switch reset
  • Coverage: 360° degree of view, up to 1200 ft²
  • Two-year warranty
  • Colors available: White
  • Certification: UL/CUL Listed
  • California Title 24 Compliant
