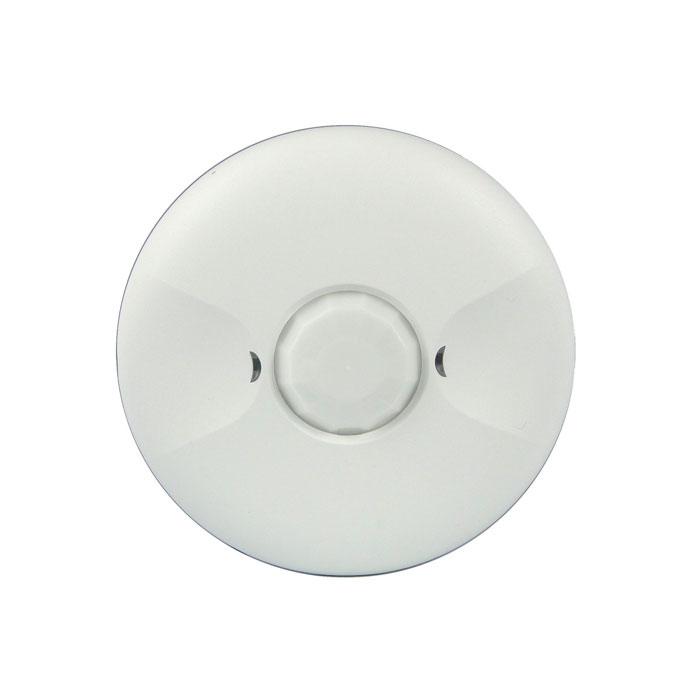

The MPC-50V 360 °passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient. The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified time the lights are switched off.
Specifications
- Input Voltage: 120-277 VAC, 60Hz
- Incandescent: 800W @ 120VAC, 60Hz
- Fluorescent: 800VA @ 120VAC/ 1600VA @ 277VAC, 60Hz
- LED 150W
- Resistive: 10 AMP @120VAC
- Motor: 1/4HP, 120VAC, 60H
- Operating Temperature: 32°F to 131°F (0°C to 55°C )
- Adjustable Light Level: 10FC-150FC
- Adjustable Time Delay: 5 sec.-30min
- Coverage: 360°，up to 1200sq.ft
- Passive Infrared technology (PIR)
- Multi-level, 360° Fresnel lens for superior occupancy detection
- Controls incandescent, CFL, and LED lighting
- Two-year warranty
- Color available: White
- Certification: UL/CUL Listed
- California Title 24 Compliant
