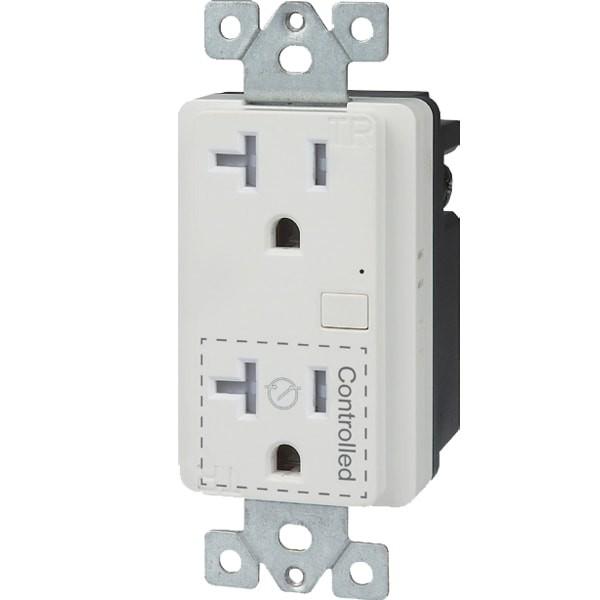

The Controlled Receptacle features an internal relay for switching the plug load on/off according to the sensor's occupancy or vacancy detection. Plug Load Receptacle should be installed to switch outlets used for task lighting, monitor, flat screen TV, and non-essential equipment in private offices, conference rooms, open offices, lunch rooms and break rooms and other areas in commercial buildings.
Specifications
- Voltage 120 or 240 VAC, 60Hz
- Load Rating 15A or 20A
- Reception Sensitivity -105dBm
- Sensor Standby Current <5uA
- Operating Temperature 30 F to 120 F
- Operates in a quiet 315MHz
- RF low profile Passive Infrared Ceiling Sensor
- One PIR Sensor can pair up to 6 smart receptacles
- Simple three steps pairing process
- Controls both 120VAC and 240VAC split receptacles
- LED indicator light and manual override
- Tamper Resistant Shutters
- Compliant with Part 15 of FCC rules
- California Title 24 2013 Section 130.5
- ASHRAE 90.1-2010
- NEMA WD-6
- UL/CUL Listed Device
