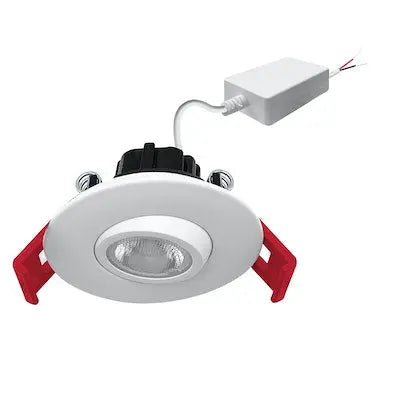

EnVision LED has developed a 2" LED Downlight, available in a straight or adjustable version, that eliminates the need for a can. The external remote junction box mounts inside the ceiling and the fixture is IC rated. EnVisions 2" downlight features a deep architectural 1.5" baffle reflector that reduces glare and eliminates hot spots. By reducing material cost and installation time, the EnVision SnapTrim is the ideal retrofit or new construction recessed lighting solution yet. Simply cut a hole in the ceiling, power the J-Box to the wall switch and "snap" the trim flush.
Detail Specification:
• Wet Location Rated
• CRI 90 COB LED Chip, R9>50
• 12V Electronic Constant Voltage Transformer Must be Used
• 35° Tilt
• 360˚ Rotation
• Operating Temperature: 0°F ~ +113°F
• PF >0.9
• Triac and ELV Dimmable Down to 5%
• Wire Length: Total length with adapter 12.5"
SpecificationsInstallation Guide
