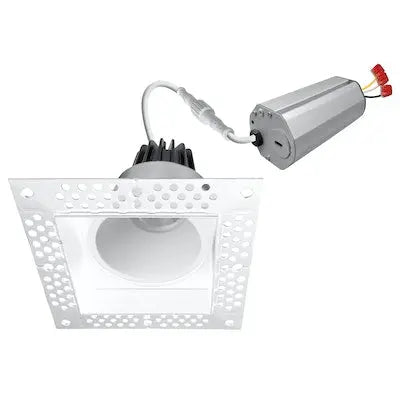

EnVisionLED 8W 2" Square Downlight: Trimless-Line

Detail Specification:
• Finish: White, Black
• Wet Location Rated
• Beam Angle: 38°standard, other options available
• Chip: COB Chip, R9 >50, CRI >90
• 2 Step MacAdam Ellipses
• Operating Temperature: -40° - 114° F
• Lens: Clear
• Average life (L70) of 50,000 hours

Applications:
• General Recessed Lighting
• Residential & Multifamily
• Office and Meeting Rooms
• Education, Healthcare, Retail, Hospitality

Product Information:
• 5-CCT Selectable: 27/30/35/40/50K
• Mud-In ring included with each fixture
• Various sizes, finishes, and trims available
• Metal housing and trim for better heat dissipation
• Gimbal models available on a separate spec sheet
• Optional emergency backup available: delivers full lumens in EM mode up to 25W

Driver Options:
• 120V Triac Dimmable
• Built in 2.5Kv Surge Protector
• Flicker Free

Mounting & Installation:
• Cut Out Dimension:
- 2" Round: 2-3/5"
- 4" Round: 3-7/8"
- 2" Square: 2-7/8" x 2-7/8"
- 4" Square: 3-7/8" x 3-7/8"
• Optional new construction plate available
• This fixture does not fit into a recessed can
• Can be removed from below the ceiling for service or replacement
• Pre-wired junction box with circuit wiring built in (3 in/ 3 out)
