Detail Specification:
• Finish: White, Black, Custom
• Wet Location Rated
• Beam Angle: 38°
• Chip: COB Chip, R9 >50, CRI >90
• 3 Step MacAdam Ellipses
• Operating Temperature: -40° - 114° F
• Lens: Clear COB
• Average life (L70) of 50,000 hours
Applications:
• General Recessed Lighting
• Residential & Multifamily
• Office and Meeting Rooms
• Education, Healthcare, Retail, Hospitality
Product Information:
• 5-CCT Selectable: 27/30/35/40/50K
• Various sizes, finishes, and trims available

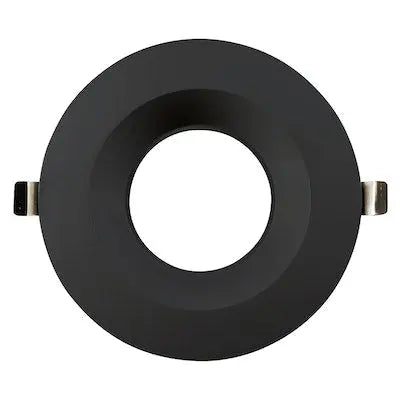

• Standard white round trim included: optional trims available
• Metal housing and trim for better heat dissipation
• Optional emergency backup available: delivers full lumens in EM mode up to 25W
• SnapTrim Canless: Spring clips with remote j-box eliminates can
Driver Options:
• 120V Triac Dimmable
• Built in 2.5Kv Surge Protector
• Flicker Free
Mounting & Installation:
• Cut Out Dimensions
- Round: 5-3/4”
- Square: 6-1/4”
• Optional new construction plate available
• This fixture does not fit into a recessed can
• No can needed in remodel applications, tension clips mount into 1/2” to 1.5” thick ceiling
• Can be removed from below the ceiling for service or replacement
• Pre-wired junction box with circuit wiring built in (3 in/ 3 out)
Certifications:
• ETL Listed for USA and CA
• Energy Star Certified
• CA Title 24 JA8-2022 CEC Listed
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
• IC Rated and ASTM-E283 Air-Tight
• Complies with UL 263, ASTM E119, CAN ULC S101
