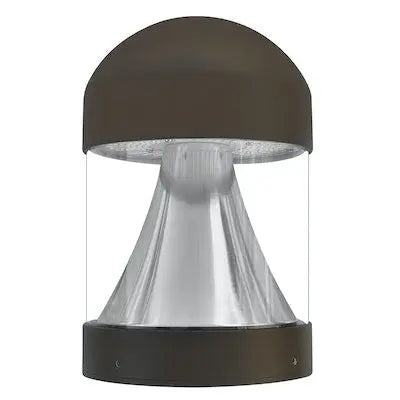

(Head only)
Detail Specifications:
• Finish: Bronze, Black, Custom finishes available
• IP Rating: Wet Location
• Beam Angle:
- Louver: Type II 360°
- Cone: Type V 360°
• Chip: SMD 2835, R9 >50, CRI >80
• 3 Step MacAdam Ellipses
• Operating Temperature: -4° - 122° F
• Lens: Clear or Frosted Acrylic
• Average life (L70) of 50,000 hours
Applications:
• Walkways & Pathways
• Driveways
• Landscape Lighting
• Hospitality, Multi-Family
• Outdoor Corridors
• Residential, Commercial and Industrial
Product Information:
• Aluminum housing finished with corrosion free power coat
• Flat or Dome Top Options
• Cone, louver, or frosted illumination
• Instant-On to full brightness
• Select-n-Switch Technology: 5-CCT + 3-Power Selectable
Driver Options:
• UNV: 120-277V 0-10V Dimmable
• HV: 347-480V 0-10V Dimmable
• THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
Mounting & Installations:
• Mounting hardware included:
- Anchor Bolt
- Washer & Nuts
Certifications:
• UL Listed for USA and CA
• DLC Listed
• Approved for CA T24
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
