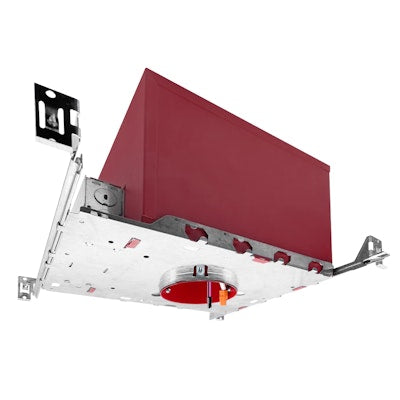

EnVisionLED C4-NC-ICAT-LED-FR-0/10V 4" Fire Rated New Construction Can
EnVisionLED - LED Light Fixtures | EnVisionLED Area Light Fixtures | EnVisionLED Batch New | EnVisionLED Downlights | Products |SKU: EnvisionLED-C4-NC-ICAT-LED-FR-0/10V
Detail Specifications:
• Title 24 Orange Quick Connect Socket
• Airtight
• IC Rated
• Voltage: 120-277V
• 0-10V Model: Will include purple and gray dimming wires
• Title 24 Orange Quick Connect Socket
• Airtight
• IC Rated
• Voltage: 120-277V
• 0-10V Model: Will include purple and gray dimming wires
Applications:
• General Recessed Lighting
• Residential & Multifamily
• Office and Meeting Rooms
• Education, Healthcare, Retail, Hospitality
• General Recessed Lighting
• Residential & Multifamily
• Office and Meeting Rooms
• Education, Healthcare, Retail, Hospitality
Product Information:
• IC airtight for direct contact with insulation
• 2-houre fire resistance to meet and exceed strict fire safety codes
• Integrated non-combustible insulation acts as sound barrier minimizing sound transfer between floors
• IC airtight for direct contact with insulation
• 2-houre fire resistance to meet and exceed strict fire safety codes
• Integrated non-combustible insulation acts as sound barrier minimizing sound transfer between floors
Driver Options:
• UNV: 120-277V Non-Dimmable
• Built in 2.5Kv Surge Protector
• THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
• UNV: 120-277V Non-Dimmable
• Built in 2.5Kv Surge Protector
• THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
Mounting & Installation:
• Designed for ceiling plenums where 2x8 joists or taller are used
• High strength hanger bars can easily be nailed to joist
• Suitable for t-grid and drop ceiling applications
• See installation instructions for detailed information
• Designed for ceiling plenums where 2x8 joists or taller are used
• High strength hanger bars can easily be nailed to joist
• Suitable for t-grid and drop ceiling applications
• See installation instructions for detailed information
Junction Box:
• Positioned to accommodate straight conduit runs
• Two ¾” knockouts, secen ½” conduit knockouts, one 3/8” knockout
• Four pry-out knockout slots for easy romex installation
• Positioned to accommodate straight conduit runs
• Two ¾” knockouts, secen ½” conduit knockouts, one 3/8” knockout
• Four pry-out knockout slots for easy romex installation
Hanger Bars:
• Pre-installed hanger bars with true nail easy installation in regular lumber, engineered lumber, and laminated beams
• Integral t-bar slots for easy installation in t-bats. Spans up 24” and can be repositioned 90°.
• Score lines allow for tool-free hanger bar size reduction
• Integral leveling flange allows for single-person installation while easily aligning the housings with the joists
• Pre-installed hanger bars with true nail easy installation in regular lumber, engineered lumber, and laminated beams
• Integral t-bar slots for easy installation in t-bats. Spans up 24” and can be repositioned 90°.
• Score lines allow for tool-free hanger bar size reduction
• Integral leveling flange allows for single-person installation while easily aligning the housings with the joists
Certifications:
• ETL Listed
• Meets Title 24 Requirements
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
• ETL Listed
• Meets Title 24 Requirements
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
Product Specifications
