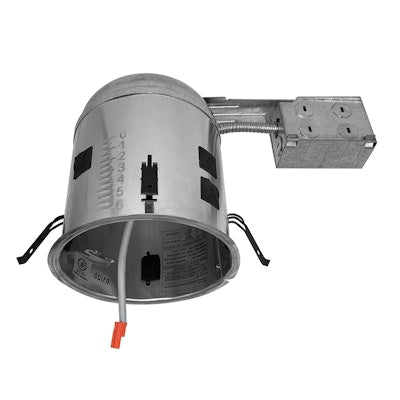

Housing:
• Single wall painted steel housing gasket for IC-Air tight in insulated ceiling
• Airtight, precent heated airflow diffusion
• IC type can be directly installed on insulation lagging of ceiling
Remodel Arm:
Single wall formed aluminum construction. Openings are gasketed for AIR-TITE installation. 5 1/2” height allows use in 2" x 6" joist construction. AIR-TITE aperture gasket is pre installed.
Mounting:
Four remodel clips secure housing and accommodate 1/2" and 5/8" ceiling material.
Junction Box:
• Six 1/2” trade size conduit knockouts with true pry-out slots
• All leads are #18AWG Wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads.
• Accepts a wide range of non-metallic sheathed cables
- The standard cable types used in lighting in both U.S. and Canada.
- Allows wiring connections to be made outside the junction box.
LED Module Connection:
EnVision’s 4” modules simply install with a plug-in 120/277V line voltage wiring connector (UL and CSA Listed Luminaire Disconnect).
The LED quick-connect pre the high efficacy rating of the luminaire.
Compliance:
• Use with designated EnVision LED modules for Energy Star qualification.
• Can be used for State of California Title 24 high efficacy compliance with designated LED modules JA8.
• Can be used for International Energy Conservation Code (IECC) high efficacy compliance with designated LED module.
Qualification:
IC and Airtight Can Certified under ASTM-E283 and listed UL/cUL 1598. May be used to meet insulated ceiling* and restricted air-flow requirements such as:
• Washington State Energy Code
• International Energy Conservation Code (IECC)
• New York State Energy Conservation Construction Code (NY-ECCC)
• State of California Title 24 “Recessed Luminaires in Insulated Ceilings.”
* Not to be used in direct contact with spray foam insulation.
