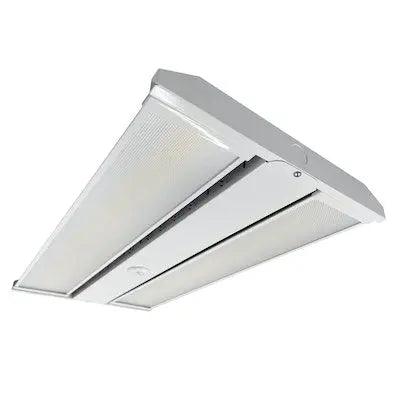

EnVisionLED LED-LHB-2FT-3P220-4CCT Linear Highbay: C-Line

Detail Specifications
• Finish: White, Custom finishes available
• IP Rating: Damp Location
• Beam Angle: 110°
• Chip: SMD 2835, R9 >50, CRI >80
• 3 Step MacAdam Ellipses
• Operating Temperature: -4° - 122° F
• Lens: Ribbed
• Average life (L70) of 70,000 hours

Applications:
• Warehouse/Distribution Facility
• Utility & Storage
• Garage Structures
• Commercial and Industrial

Product Information:
• Aluminum housing finished with corrosion free power coat
• Replace existing fixtures or use in new construction
• Compact design for easier installation
• 4-CCT & 3-Power Selectable

Driver Options:
• UNV: 120-277V 0-10V Dimmable
• HV: 277-480V 0-10V Dimmable
• THD: <15% (=/-5% tolerance), PF >0.9, 50/60Hz

Mounting & Installation:
• 3.5’ adjustable suspension kit included
• Optional 9’ adjustable suspension kit available
• Optional 6' chain kit available
• Optional surface mount kit available
• Optional pendant mount kit available

Certifications:
• UL Listed for USA and CA
• DLC Premium Listed
• ROHS Compliant
• Approved for CA T24
• 5 Year Limited Warranty
• FCC CFR 47, GCC Part 15, Subpart B:2017
